Product Overview

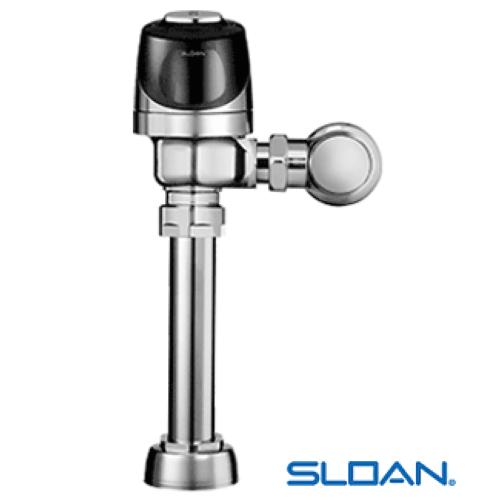

Upgrade restrooms with the Sloan 8110 G2 Optima Plus Sensor Flushometer, a high-performance, exposed water closet flush valve engineered for hygienic, automatic hands-free operation in commercial facilities. This battery-powered model features an advanced infrared sensor with multiple-focused, lobular detection fields for reliable activation and a user-friendly three-second flush delay to prevent false flushes. Built with durable PERMEX® synthetic rubber diaphragms and semi-red brass castings for long service life, it includes a courtesy flush override button, low-battery LED indicator, adjustable tailpiece, vandal-resistant stop cap and precise water delivery with a 3.5 gpf flush volume. ADA-compliant and designed for both floor-mounted and wall-hung top spud bowls, the Sloan 8110 promotes sanitation, water efficiency and reduced maintenance in high-traffic restroom environments.
Features
- PERMEX® synthetic rubber diaphragm with dual filtered fixed bypass
- Flex tube diaphragm designed for improved life and reduced maintenance
- ADA Compliant OPTIMA Plus® Battery Powered Infrared Sensor for automatic “no hands” operation
- Infrared Sensor with multiple-focused, lobular sensing fields for high and low target detection
- Latching solenoid operator
- Engineered metal cover with replaceable lens window
- User friendly three (3) second flush delay
- Courtesy Flush® override button
- Four (4) Size AA alkaline batteries included: Duracell® with DURALOCK Power Preserve Technology™- guaranteed for up to 10 years in storage
- “Low Battery” flashing LED
- Infrared sensor range adjustment screw
- Initial set-up range indicator light (first 10 minutes)
- 1” I.P.S. screwdriver Bak-Chek® angle stop
- Free spinning, vandal resistant stop cap
- Adjustable tailpiece
- High back pressure vacuum breaker flush connection with one-piece bottom hex coupling nut
- Spud coupling and flange for 1½” top spud
- Sweat solder adapter with cover tube and cast set screw wall flange
- High copper, low zinc brass castings for dezincification resistance
- Fixed metering bypass and no external volume adjustment to ensure water conservation
| Brand | Sloan® |
| Sub-Brand | Optima® Plus |
| Case LxWxH | x x |
| Color | Polished Chrome |
| Cube | 0.23 |
| Packaging Put/Up | 1/ea |
| Pallet Ti x Hi = Qty | x = |
| Sell UOM LxWxH | EA - 9.75 x 9.13 x 4.38 |
| Weight | 0 |
Safety Data Sheets
No Safety Data Sheets available for this product.
Technical Resources
| Name | Download | File type | |
|---|---|---|---|
|
|
Installation Guide | 3290 KB | |
|
|
Spec Sheet | 255 KB |
