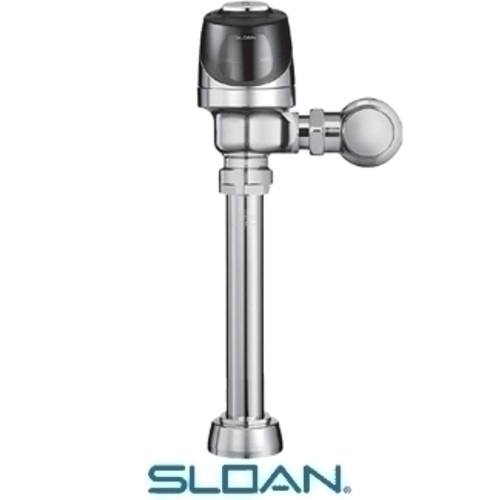

Sloan® G2 8113 Optima® Plus Exposed Sensor Water Closet Flushometer, 1.6 gpf, Polished Chrome, 1/ea

Product Overview

Upgrade commercial restroom performance with the Sloan® G2 8113-1.6 Exposed Sensor Flushometer (3250421), engineered for water closet installations with a polished chrome finish and robust semi-red brass construction. This battery-powered, infrared-activated valve delivers a single 1.6 gallon-per-flush cycle using advanced lobular sensing fields that reliably detect both high and low targets. Features include an adjustable tailpiece for flexible installation, a three-second flush delay, and a courtesy flush override button for enhanced user convenience. Designed for durability and hygiene, it meets key industry certifications including ADA compliance, BAA compliance, and cUPC certification, while offering efficient water use for sustainable operation. With support for 15-80 psi pressure and a 1-1/2” spud connection, this sensor flushometer is ideal for high-traffic commercial facilities.

Features

• Details:
       Flush Volume: 1.6 gpf (6.0 lpf)
       Finish: Polished Chrome (CP)
       Power Type: Battery
       Valve: Diaphragm
       Valve Body Material: Semi-red Brass
       Fixture Type: Water Closet
       Fixture Connection: Top Spud
       Rough-in Dimension: 16” (406mm)
       Spud Coupling: 1.5” (38mm)
       Supply Pipe: 1” (25mm)

• Automatically operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• User-friendly, three-second flush delay and Courtesy Flush® override button
• Adjustable tailpiece
• High copper, low zinc brass castings for dezincification resistance
• Low consumption (1.6 gpf/6.0 Lpf),
• Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
• Valve shall be in compliance to the applicable sections of ASSE 1037
• ADA compliant
