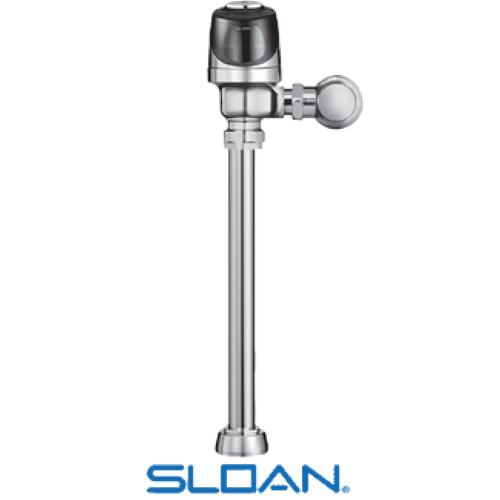

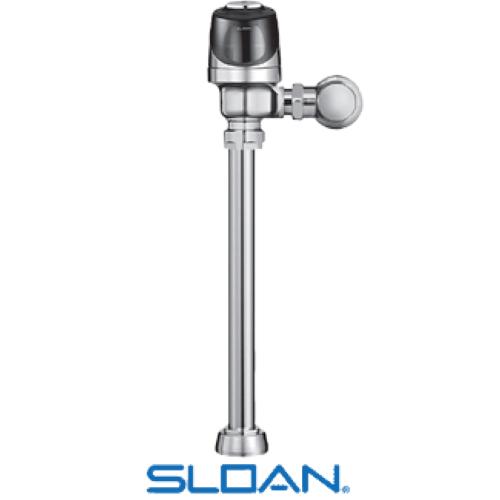

Sloan® 8116-1.6 G2 Exposed Sensor Water Closet Flushometer, 1.6 gpf, Polished Chrome, 1/ea (3250407)

Product Overview

The Sloan G2 8116-1.6-CP Sensor Flushometer is a high-performance, exposed sensor flush valve designed for commercial water closets seeking dependable, hygienic, hands-free operation. With a polished chrome finish and 1.6 gallons per flush (6.0 Lpf), this battery-powered flushometer uses advanced infrared sensing with multiple-focused, lobular sensing fields to ensure accurate activation and water efficiency. It includes a three-second flush delay, a Courtesy Flush override button, and an adjustable tailpiece for flexible installation. Built with semi-red brass body, cover, and control stop for dezincification resistance, it meets ADA, BAA and cUPC certifications while delivering durable performance in busy restroom environments. Designed to support a range of models including low-consumption and water-saving options, the G2 8116 offers water conservation without compromising reliable flushing for commercial facilities.

Features

• Details:
       Flush Volume: 1.6 gpf (6.0 lpf)
       Finish: Polished Chrome (CP)
       Power Type: Battery
       Valve: Diaphragm
       Valve Body Material: Semi-red Brass
       Fixture Type: Water Closet
       Fixture Connection: Top Spud
       Rough-in Dimension: 27” (686mm)
       Spud Coupling: 1.5” (38mm)
       Supply Pipe: 1” (25mm)

• Automatically operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• User-friendly, three-second flush delay and Courtesy Flush override button
• Adjustable tailpiece to accommodate different height requirements
• High copper, low zinc brass castings for dezincification resistance
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037
