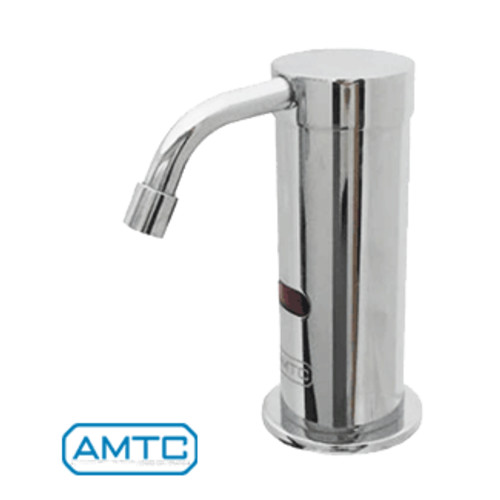

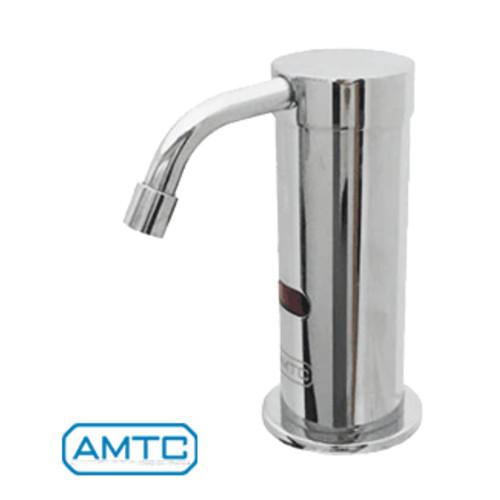

Product Overview
The ASD-500 automatic foam soap dispenser system operates using a gear motor drive mechanism. The spout is built of high quality solid polished brass. The design of the control unit allows for easy installation and conceals all mechanical and electrical components within dispensing head. A universal refillable soap container makes the ASD-500 automatic foam soap dispenser system ideal and efficient.
Features
- Chrome plated polished brass spout
- Gear motor drive
- Hands-free infrared sensor activation
- Easy installation
- Powered by four Alkaline D-Cell batteries (not included)
- Battery Life: 90,000 cycles or 2 years
- AC power adapter (optional)
- Universal refillable foam soap container (800 ml / 27 fl. oz.)
- Dispenses 0.8 ml of concentrated, rich foam per dose
- 1,000 hand washes per 800 ml bottle
- Mounts through 1" (25.4mm) diameter hole in lavatory or countertop
- Self-adjusting sensor
- Activation indicator: Blue LED on sensor
- Low battery Indicator: Flashing blue LED on sensor
- Low soap indicator: Flashing red LED on sensor
- Reset button automatically primes new soap and resets red LED
- ADA compliant
- Warranty: 3 years (Limited)
| Brand | AMTC |
| Sub-Brand | FOAMFLO® |
| Case LxWxH | x x |
| Color | Chrome |
| Cube | 0 |
| Net Weight | 10 |
| Packaging Put/Up | 1/ea |
| Pallet Ti x Hi = Qty | x = |
| Sell UOM LxWxH | EA - x x |
| Sell UOM Weight (lbs.) | 10 |
| Size | 4 in. spout |
| Weight | 0 |
Safety Data Sheets
No Safety Data Sheets available for this product.
Technical Resources
| Name | Download | File type | |
|---|---|---|---|
|
|
Installation Guide | 4996 KB | |
|
|
Spec Sheet | 449 KB |
