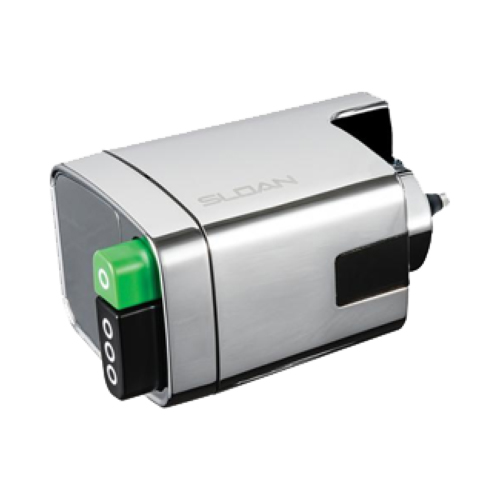

Sloan® EBV-550-A Exposed Sensor Water Closet Retrofit Flushometer, 1.6/1.1 gpf, Polished Chrome, 1/ea

Product Overview

The Sloan EBV-550-A Dual-Flush Side Mount Sensor Retrofit Kit is a high-efficiency upgrade for exposed closet flushometers in commercial restrooms. Designed for retrofit applications, this battery-powered, infrared-activated unit provides hands-free hygiene and water conservation with selectable dual flush volumes (1.1 gpf for liquid and 1.6 gpf for solid waste). Its polished chrome sensor housing includes True Mechanical Override full and reduced flush buttons, intuitive LED indicators, and a three-second flush delay for user comfort and reliability. With a 72-hour sentinel flush feature to prevent stagnation and included installation tools, the EBV-550-A easily fits Sloan, Royal, Regal, and Zurn flushometers without volume adjustment. Engineered for durability and ADA compliance, it promotes sustainability and reduced maintenance in busy commercial environments.

Features

• ADA compliant Optima Plus® battery powered infrared side mount sensor for automatic “no hands” operation
• Chrome plated infrared sensor housing
• Non-hold-open true mechanical override full flush button
• If the user is present for less than one minute and leaves the sensing zone or chooses the small GREEN override button, a reduced flush initiates (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste, saving 1/2 gallon of water
• If the user is present for greater than one minute and leaves the zone or chooses the large BLACK override button, the full flush initiates (1.6 gpf/6.0 Lpf) eliminating solid waste and paper
• Reduces water volume by up to 30% when a reduced flush occurs
• Initial set-up range indicator light (first 10 minutes)
• User friendly three (3) second flush delay
• Four (4) size C alkaline batteries included: Duracell® with DURALOCK Power Preserve Technology™- guaranteed for up to 10 years in storage
• “Low Battery” flashing LED
• “User in View” flashing LED
• Can be installed when handle is on left side or right side of valve
• Installation tools provided
• No external volume adjustment to ensure water conservation
• Equipped with Smart Sense Technology™, which applies extended range and logic techniques to significantly reduce water usage
• Activated via multi-lobular infrared sensor by detecting user presence and duration, the DFSM unit will determine the proper flush volume for unequalled water efficiency
• Features service mode which ignores targets for 10 minutes to enable fixture to be cleaned or serviced
• Touchless, sensor activation eliminates the need for user contact to help control the spread of infectious diseases
• The 72-Hour Sentinel Flush keeps fixture fresh during periods of nonuse
• 3 year limited warranty
