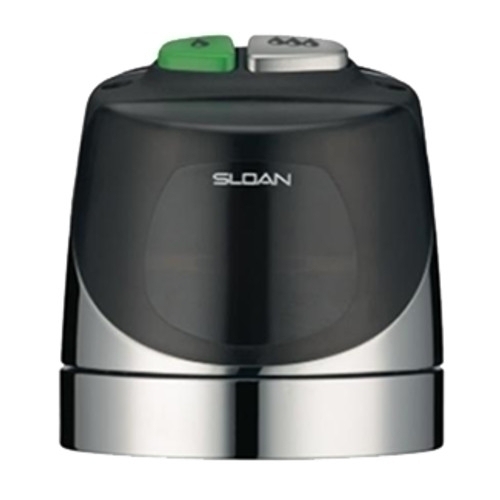

Sloan® RESS-C ECOS® Exposed Sensor Water Closet Retrofit Flushometer, 1.6/1.1 gpf, Polished Chrome, 1/ea

Product Overview

The Sloan RESS-C ECOS Electronic Dual Flush Retrofit Conversion Kit (3375400) brings advanced water-saving technology and hygienic automation to existing exposed closet flushometers. Designed with Smart Sense infrared detection, this battery-powered unit determines the appropriate flush volume — a 1.1 gpf reduced flush for liquid waste and 1.6 gpf full flush for solid waste — helping reduce overall water usage by up to 30%. With ADA-compliant sensor-activated operation and courtesy flush override buttons, it minimizes touchpoints and supports accessible restroom use. Built for durability, it includes a PERMEX® synthetic rubber diaphragm with dual filtered bypass, flex-tube design for long life and reduced maintenance, and an engineered cover with replaceable lens window. The Retrofit Conversion Kit installs easily on Sloan Royal®, Regal Pro® and Regal® flushometers and includes instructional wall plates to guide users. Ideal for updating commercial facilities seeking water efficiency, hygiene, and modern functionality without replacing existing flush valve bodies.

Features

• Touchless, sensor operation eliminates the need for user contact to help control the spread of infectious diseases
• If the user is present for less than one minute and leaves the sensing zone or chooses the small override button, a reduced flush initiates (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste, saving 1/2 gallon of water
• If the user is present for greater than one minute and leaves the zone or chooses the large override button, the full flush initiates (1.6 gpf/6.0 Lpf) eliminating solid waste and paper
• Reduces water volume by up to 30% when a reduced flush occurs
• PERMEX™ Synthetic Rubber Diaphragm with twin linear filtered bypass and vortex cleansing action
• Flex tube diaphragm designed for improved life and reduced maintenance
• ADA compliant Sloan ECOSTM electronic dual flush battery powered infrared sensor for automatic “no hands” operation
• Infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• Latching solenoid operator
• Engineered metal cover with replaceable lens window
• User friendly three (3) second flush delay
• Courtesy Flush™ override button
• Four (4) size AA batteries factory installed
• “Low Battery” flashing LED
• Infrared sensor range adjustment screw
• Initial set-up range indicator light (first 10 minutes)
• Chrome plated metal handle cap
• Installation tools provided
• Diaphragm molded from PERMEX™ rubber compound for chloramine resistance
• 100% of the energy used in manufacturing is offset with renewable energy sources – wind energy
