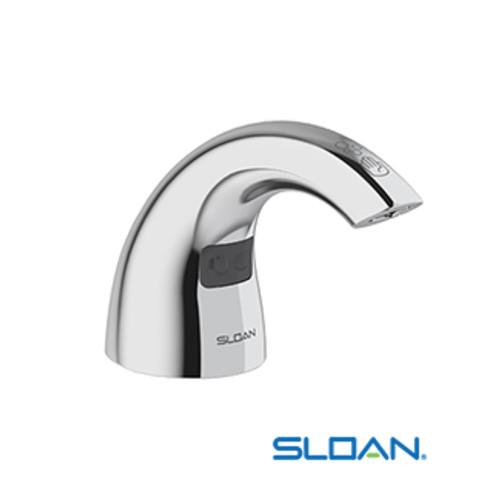

Sloan® ESD-2100 Sensor Activated Electronic Soap Dispenser, Polished Chrome, 1/ea

Item # ESD2100A-3346098

The Sloan ESD‑2100 Deck‑Mounted Foam Soap Dispenser (3346098) delivers hygienic, touch‑free foam soap dispensing with a polished chrome die‑cast body and infrared sensor activation, ideal for commercial restrooms. Its modular one‑piece design mounts easily to sink decks, while sealed electronics and a 360° rotating motor assembly ensure reliable performance. Ships with two 1500 ml non‑scented, non‑colored soap bottles and long‑life battery pack for up to 45,000 activations.

Unit: Each

Request a Quote

Product Overview

Upgrade wash stations with the Sloan ESD‑2100 Deck‑Mounted Foam Soap Dispenser (3346098), engineered for efficient touch‑free hygiene in high‑traffic commercial and institutional restrooms. This polished chrome dispenser features an infrared sensor that delivers pre‑measured foam soap on demand, reducing contact and improving sanitation. Its modular one‑piece construction installs easily on sink decks, and sealed electronics protect key components from moisture. The motor assembly, suspended under the deck, rotates 360° for simplified installation and maintenance. Supplied with two 1500 ml bottles of non‑scented, non‑colored foam soap and a battery pack with four “D” alkaline cells, the ESD‑2100 supports approximately 45,000 activations. Additional refills are available through Sloan or GOJO distributions. Optional AC adapter power is available separately, and the dispenser can be paired with Sloan SF‑series faucets for coordinated washroom design.

Features

Details:
Finish: Polished Chrome (CP)
Power Type: Battery
Height: 4" (102mm)
Width: 2 3/10" (58mm)
Depth: 54/5" (147mm)
Sensor Type: IR
Maximum Deck Thickness: 2.00” (51mm)
Soap Type: Foam
Modular one-piece construction is easy to install on a sink deck surface
All electronics in spout are sealed
Designed for drip free foam dispensing operation
Motor assembly suspended under counter connected to soap dispenser spout
Motor assembly rotates 360 degrees for easy installation
Battery life of 45,000 activations
1,500 dispenses per foam soap bottle
Ships with 2 bottles of non-scented, non-colored foam soap (1500ml per bottle)
Additional foam soap can be purchased through Sloan (ESD321) or GOJO distribution (8565-02-N6300GN)
Sensor range – nominal 5”
Ships with battery pack (4 "D" Alkaline batteries included)
Optional AC adaptor can be purchased separately
GFI outlet suggested per code
20V/15 Amp
