Sloan® ESD-500 Deck-Mounted Foam Soap Dispenser, Brushed Stainless, 1/ea (3346141)

Item # 42727077

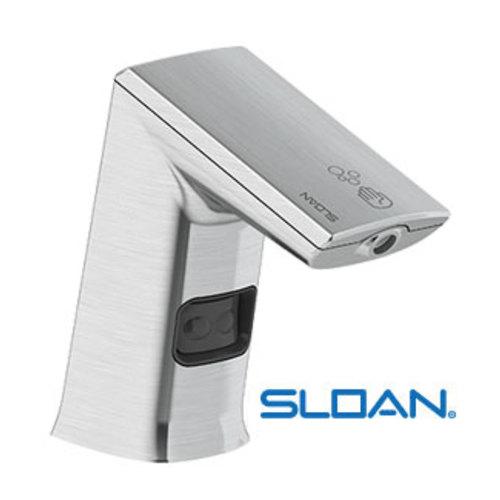

Sloan® ESD-500 Deck-Mounted Foam Soap Dispenser, Brushed Stainless, 1/ea (3346141)
The Sloan ESD‑500 Deck‑Mounted Foam Soap Dispenser with a brushed stainless finish is a premium sensor-activated soap dispenser ideal for commercial restrooms and sinks. Featuring infrared touch-free activation and a durable die-cast body, this deck-mounted unit delivers drip-free foam soap to improve hand hygiene while reducing waste. It includes two 1500 ml bottles of non-scented, non-colored soap and a long-life battery pack for up to 45,000 activations. Easy to install with sealed electronics and a compact design, it enhances sanitation and convenience.
$858.91

Product Overview

The Sloan ESD‑500 Deck‑Mounted Foam Soap Dispenser in brushed stainless steel offers a stylish and hygienic solution for modern commercial restrooms and wash areas. This sensor-activated dispenser uses reliable infrared detection to deliver pre-measured foam soap without contact, helping reduce cross-contamination and eliminate messy drips. Its modular die-cast construction mounts easily to deck surfaces with sealed electronics to guard against moisture and simplify maintenance. Included with the unit are two 1500 ml bottles of high-capacity, non-scented, non-colored foam soap and a battery pack that supports up to 45,000 activations, making it ideal for high-traffic environments. With a nominal 5″ sensor range and optional AC adaptor capability, this deck-mounted soap dispenser enhances restroom sanitation, lowers operating costs, and pairs seamlessly with Sloan faucets to elevate overall facility hygiene.

Features

  • Details:
         Finish: Brushed Stainless (SF)
         Power Type: Battery
         Height: 5" (127mm)
         Width: 2" (51mm)
         Depth: 5" (132mm)
         Sensor Type: IR
  • Modular one-piece construction easily attaches to deck surface
  • All electronics in spout are sealed
  • Designed for drip free foam dispensing operation
  • Motor assembly suspended under counter connected to soap dispenser spout
  • Motor assembly rotates 360 degrees for easy installation
  • Battery life of 45,000 activations
  • 1,500 dispenses per foam soap bottle
  • Ships with 2 bottles of non-scented, non-colored foam soap (1500ml per bottle)
  • Additional foam soap can be purchased through Sloan (ESD-321) or GOJO distribution (8565-02-N6300GN)
  • Ships with battery pack (4 "D" Alkaline batteries included)
  • Sensor range - nominal 5"
  • GFI outlet suggested per code 120V/15 Amp
  • Optional AC adaptor can be purchased separately (part number 0346090)
Brand Sloan®
Case LxWxH x x
Color Brushed Stainless Steel
Cube 0
Packaging Put/Up 1/ea
Pallet Ti x Hi x Qty x x
Prop 65 This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For further details, please visit www.p65warnings.ca.gov.
Sell UOM LxWxH EA - x x
Sell UOM Weight (lbs.) 13.7
Weight 13.7

Safety Data Sheets

No Safety Data Sheets available for this product.

Product Reviews
