Product Overview

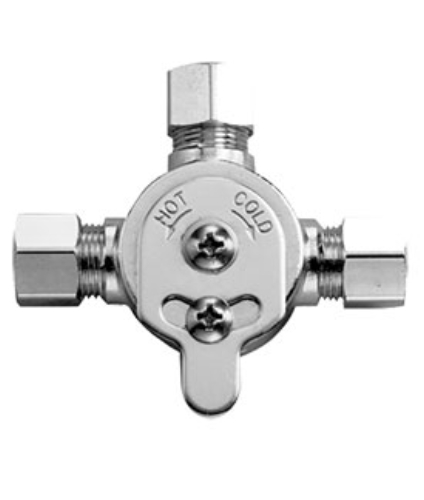

The MIX-60-A mixing valve kit is a comprehensive and reliable solution for managing the temperature flow of water in commercial restroom. This product is a below deck mixer which means it is installed beneath the sink and provides manual control over the water supply for your Sloan faucet. The MIX-60-A manual mixing valve is a standout feature of this kit. With its easy to use controls, users can manually adjust the amount of hot or cold water that feeds into the tempered water supply, ensuring a consistent and comfortable water temperature at all times. This precise control over water temperature is especially important in high-traffic restrooms. Installation and maintenance of the MIX-60-A mixing valve is straightforward, making it easy for facilities to upgrade their restroom fixtures. This kit includes everything needed for installation, including the mixing valve, inlet and outlet connections, and mounting hardware.
Features
- Designed to install under the lavatory
- Supplied with Sloan Optima and Optima Plus faucets that are specified with the “BDM” (Below-Deck-Mixer) variation
- Installs in place of the tee fitting supplied with the faucet prior to the solenoid valve
- Equipped with integral check valves at inlets
- 3/8” compression fittings on inlets and outlet
- Compression sleeves and nuts included
- Lever dial adjustment with lock screw: COLD-HOT
- Brass construction
- Chrome plated finish
| Brand | Sloan® |
| Case LxWxH | x x |
| Color | Chrome |
| Cube | 0.01 |
| UPC | 671254142114 |
| Packaging Put/Up | 1/ea |
| Pallet Ti x Hi x Qty | x x |
| Prop 65 | This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For further details, please visit www.p65warnings.ca.gov. |
| Sell UOM LxWxH | EA - 3.7 x 2.6 x 1.2 |
| Sell UOM Weight (lbs.) | 1 |
| Weight | 1 |
