Product Overview

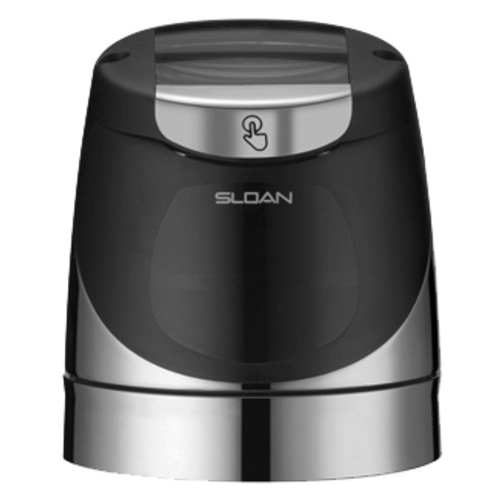

The Sloan SOLIS® RESS-U-0.5-CP Solar-Powered Sensor Urinal Retrofit Flushometer is an efficient, ADA-compliant solution for updating restroom fixtures with modern hands-free operation. Featuring a polished chrome finish and durable semi-red brass construction, this exposed flushometer delivers a 0.5 gallons per flush (1.9 L) water volume while conserving resources through its fixed metering bypass and no external volume adjustments. Powered primarily by an indoor light-harvesting solar cell with AA battery backup, the integrated infrared sensor provides reliable high/low target detection with a courteous three-second flush delay and override button. Ideal for retrofit projects on Royal®, Sloan® and Regal® urinals, it combines sustainability, comfort and low maintenance in commercial environments.
Features
- Details:Flush Volume: 0.5 gpf (1.9 lpf)Finish: Polished Chrome (CP)Power Type: SolarValve: DiaphragmValve Body Material: Semi-red BrassFixture Type: UrinalFixture Connection: Top SpudOverride: Electrical
- User friendly three (3) second flush delay
- “Low Battery” flashing LED
- Solar Powered - the sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energysource
- The solar cell can provide approximately 100% power with 650 illuminance (lux)
- Four (4) size AA battery back-up power source
- Infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- PERMEX® synthetic rubber flex tube diaphragm with twin linear filtered bypass and vortex cleansing action
- Flex tube diaphragm designed for improved life and reduced maintenance
- ADA compliant Sloan Solis® solar powered infrared sensor for automatic “no hands” operation
- Diaphragm molded from PERMEX® rubber compound for chloramine resistance
- Courtesy Flush® override button
| Brand | Sloan® |
| Sub-Brand | Solis® |
| Case LxWxH | x x |
| Color | Black/Polished Chrome |
| Cube | 0 |
| UPC | 671254351684 |
| Packaging Put/Up | 1/ea |
| Pallet Ti x Hi x Qty | x x |
| Sell UOM LxWxH | EA - x x |
| Sell UOM Weight (lbs.) | 3.417 |
| Weight | 0 |
Safety Data Sheets
No Safety Data Sheets available for this product.
Technical Resources
| Name | Download | File type | |
|---|---|---|---|
|
|
Installation Guide | 210 KB | |
|
|
Spec Sheet | 232 KB |
