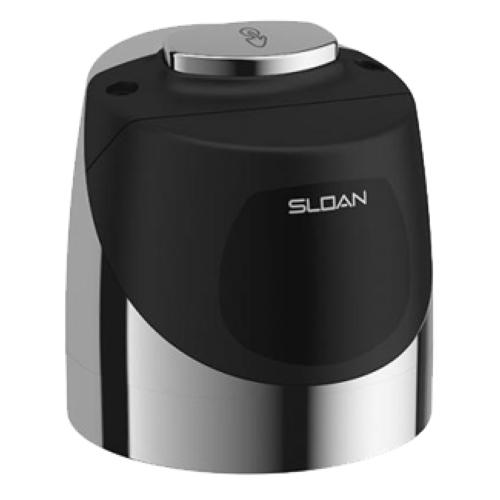

Sloan® RESS-U G2 Sensor Urinal Flushometer, 1.5/1.0 gpf, Polished Chrome, 1/ea (3325402)

Item # RESS-U

The Sloan 3325402 G2 Sensor Flushometer is a polished‑chrome, battery‑powered retrofit flush valve designed to convert exposed urinal fixtures to hands‑free operation with a 1.0/1.5 gpf flush. Featuring reliable infrared sensor activation, a semi‑red brass diaphragm valve, and durable construction, it enhances restroom hygiene and water efficiency in commercial settings. ADA, BAA, and cUPC certified for quality and compliance.

$475.31

Product Overview

The Sloan 3325402 G2 Sensor Flushometer brings modern, touch‑free flushing performance to urinal installations with a sleek polished‑chrome finish and robust design. This battery‑powered retrofit flushometer operates at 1.0 gpf or 1.5 gpf to support water conservation goals while delivering a powerful single flush. Infrared sensor activation eliminates the need for manual handles, improving hygiene in commercial restrooms such as offices, airports, schools, and healthcare facilities. Built with a semi‑red brass diaphragm valve and engineered for dependable performance under 15–80 psi pressure, it includes features like a user‑friendly three‑second flush delay, “low battery” LED indicator, and electrical override capability for courtesy flushes. Certified to ADA, BAA, and cUPC standards, this G2 Optima Plus flushometer blends efficiency, sanitation, and durability for busy public environments.

Features

Flush Volume: 1.5/1.0 gpf (5.7 / 3.8 lpf)
Finish: Polished Chrome (CP)
Power Type: Battery
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
Fixture Connection: Top Spud
Override: Electrical
Uses infrared to detect the presence of the user and automatically flushes after every use
Requires only one trade for installation
Provides a visual indication of sensor range at startup
Incorporates a low-battery indicator light - delivers up to 4.000 flushes after low-battery indicator light flashes, assuring ample time for battery replacement
Keeps urinal bowl clean with "Sentinel" Flushing - 24-hours-after-last-flushing cycle
Uses energy-saving mode to extend battery life
Incorporates self-diagnostic circuitry - utilizes modulated infrared signal
ADA-compliant retrofit conversion kits for Royal, Regal and Sloan exposed water closet and urinal Flushometers
Courtesy Flush override button allows user to flush at own discretion
Latching solenoid operator protects against moisture and keeps the moving components of the solenoid completely isolated from the water supply
Kits can include a valve body with an adjustable ground joint tailpiece connection to upgrade urinal Coyne and Delany valves without replacing supply stop and vacuum breaker or to upgrade Cambridge Brass Teck Valve water closet control stop
