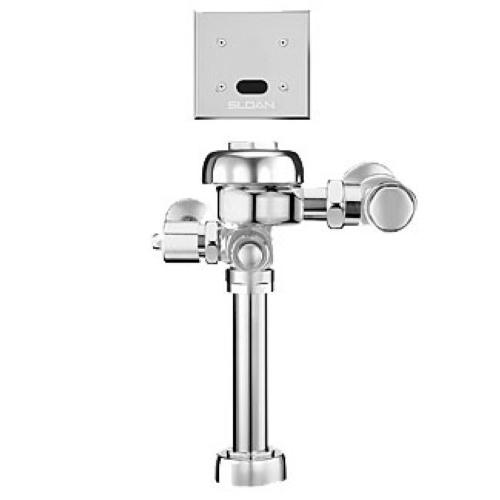

Sloan® 111 ESS-1.28 Exposed Sensor Hardwired Water Closet Flushometer, 1.28 gpf, Polished Chrome, 1/ea

Item # 42727445

Sloan® 111 ESS-1.28 Exposed Sensor Hardwired Water Closet Flushometer, 1.28 gpf, Polished Chrome, 1/ea
The Sloan 3770035 111 ESS Sensor Flushometer is a hardwired, polished chrome automatic flush valve for water closets with a 1.28 gallons-per-flush (gpf) rate, ideal for commercial restrooms. Featuring a dual-filtered fixed bypass diaphragm, true mechanical override, ADA compliance, and vandal-resistant design, this exposed sensor flushometer offers dependable, high-efficiency performance. Adjustable sensor range and durable brass construction ensure long-lasting use.
Price :

Product Overview

The Sloan 3770035 111 ESS Sensor Flushometer is a high-efficiency, hardwired automatic flush valve engineered for top spud water closet installations in commercial facilities. With a 1.28 gpf flush volume, polished chrome finish, and dual-filtered fixed bypass diaphragm, it delivers consistent and water-conserving performance while meeting ADA, WaterSense, and multiple green building standards. Built from semi-red brass with a true mechanical override and vandal-resistant components, this exposed sensor flushometer uses a reliable 24 V sensor system with adjustable range for touchless operation. Its robust design, adjustable tailpiece, and quality materials make it ideal for heavy-use environments like offices, schools, and public facilities, ensuring both durability and water savings.

Features

  • Details:
         Flush Volume: 1.28 gpf (4.8 lpf)
         Finish: Polished Chrome (CP)
         Power Type: Hardwired (HW)
         Valve: Diaphragm
         Bypass: Dual-Filtered Fixed Bypass Diaphragm
         Valve Body Material: Semi-red Brass
         Fixture Type: Water Closet
         Fixture Connection: Top Spud
         Rough-in Dimension: 11.5” (292mm)
         Spud Coupling: 1.5” (38mm)
         Supply Pipe: 1” (25mm)
         Override: True Mechanical (TMO)
         Voltage: 24V (24V)
  • Flush volumes start as low as 1.6 gpf/6.0 Lpf
  • Water conservation is aided by the ADA-compliant, non-holdopen handle, which prevents toilet from exceeding intended flush volume
  • Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
  • Integrity of the product is maintained with the vandal-resistant stop cap
  • Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
  • Adjustable tailpiece to accommodate different height requirements
  • High chloramine resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
  • Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
  • Valve shall be in compliance to the applicable sections of ASSE 1037
Brand Sloan®
Case LxWxH x x
Color Polished Chrome
Cube 0
Packaging Put/Up 1/ea
Pallet Ti x Hi x Qty x x
Sell UOM LxWxH EA - x x
Sell UOM Weight (lbs.) 0
Weight 0

Safety Data Sheets

No Safety Data Sheets available for this product.


Technical Resources

  Name Download File type
Spec Sheet
Spec Sheet 354 KB PDF
