Sloan® 186-0.125 Exposed Manual Urinal Flushometer, 0.125 gpf, Polished Chrome, 1/ea (3782643) 42727491
Sloan® 186-0.125 Exposed Manual Urinal Flushometer, 0.125 gpf, Polished Chrome, 1/ea (3782643) 42727491

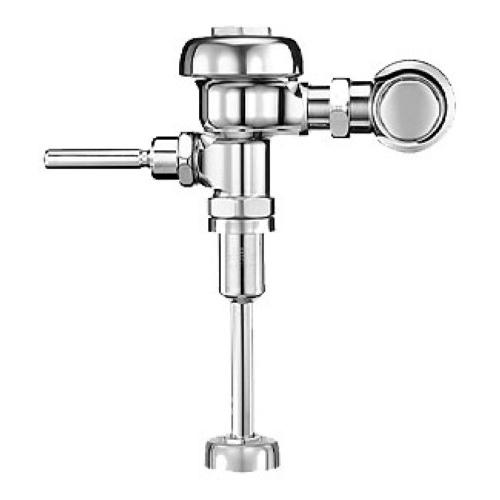

Sloan® 186-0.125 Exposed Manual Urinal Flushometer, 0.125 gpf, Polished Chrome, 1/ea (3782643)

Item # 42727491

Sloan® 186-0.125 Exposed Manual Urinal Flushometer, 0.125 gpf, Polished Chrome, 1/ea (3782643)
Boost restroom efficiency with the Sloan 3782643 Manual Exposed Urinal Flushometer (186-0.125-CP). Engineered for top-spud urinals, this high-efficiency valve delivers a 0.125 gpf (0.5 Lpf) flush rate to reduce water use without sacrificing performance. Built with durable semi-red brass and polished chrome finish, it includes a PERMEX® diaphragm, ADA-compliant non-hold-open handle, vandal-resistant stop cap, and adjustable tailpiece. Ideal for commercial spaces seeking water savings and dependable operation.
$191.23

Product Overview

The Sloan 3782643 Manual Exposed Urinal Flushometer (Series 186-0.125-CP) is a top choice for commercial restroom installations focused on efficiency and durability. With an ultra-low 0.125 gallons-per-flush (0.5 Lpf) rating, this unit helps significantly reduce water consumption while maintaining reliable flushing performance. Its polished chrome finish and semi-red brass construction offer long-lasting corrosion resistance in high-traffic settings. Featuring a PERMEX® synthetic rubber diaphragm with dual-filtered bypass, ADA-compliant non-hold-open handle, vandal-resistant stop cap, and adjustable tailpiece for flexible installation heights, this flushometer is built for institutional, office, and public restrooms. Designed for top-spud urinal fittings and compliant with water-efficiency standards when paired with a WaterSense fixture, it delivers both sustainability and performance you can count on.

Features

  • Details:
         Flush Volume: 0.125 gpf (0.5 lpf)
         Finish: Polished Chrome (CP)
         Valve: Diaphragm
         Bypass: Dual-Filtered Bypass
         Valve Body Material: Semi-red Brass
         Fixture Type: Urinal
         Fixture Connection: Top Spud
         Rough-in Dimension: 11.5” (292mm)
         Spud Coupling: 0.75” (19mm)
         Supply Pipe: 0.75” (19mm)
  • Flush volumes start as low as 0.125 gpf/0.5 Lpf
  • Water conservation is aided by the ADA-compliant, non-hold open handle, which prevents urinal from exceeding intended flush volume
  • Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
  • Integrity of the product is maintained with the vandal-resistant stop cap
  • Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
  • Adjustable tailpiece to accommodate different height requirements
  • High chloramine resistant PERMEX® synthetic rubber diaphragm with linear filtered bypass and vortex cleansing action
  • Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
  • Valve shall be in compliance to the applicable sections of ASSE 1037
Brand Sloan®
Case LxWxH x x
Color Polished Chrome
Cube 0
Net Weight 0
Packaging Put/Up 1/ea
Pallet Ti x Hi = Qty x =
Sell UOM LxWxH EA - x x
Sell UOM Weight (lbs.) 0
Weight 0

Safety Data Sheets

No Safety Data Sheets available for this product.


Technical Resources

  Name Download File type
Spec Sheet
Spec Sheet 328 KB PDF
