Product Overview

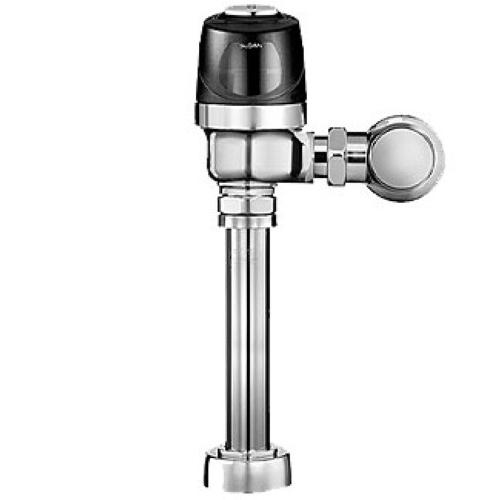

The Sloan 3790017 Sensor Flushometer offers a high-efficiency, touchless flushing solution for commercial restrooms and institutional facilities. Designed with a polished chrome finish and rugged semi-red brass construction, this exposed flushometer operates on long-lasting batteries and uses infrared sensor activation to provide hygienic, hands-free flushing at a 1.6 gallons-per-flush rate that supports water conservation goals. Its dual-filtered fixed bypass diaphragm with high chloramine resistance and vortex cleansing action helps maintain reliable performance over time. The flushometer includes an electrical override button for courtesy flushes and is compliant with ADA, BAA, and cUPC standards, making it suitable for offices, airports, schools, healthcare facilities, and other busy environments where cleanliness and efficiency are critical. With simple installation and durable components, this Sloan Optima Plus model delivers dependable, low-maintenance operation in high-traffic washrooms.
Features
- Flush Volume: 1.6 gpf (6.0 Lpf)
- Finish: Polished Chrome (CP)
- Power Type: Battery
- Battery Life: 6 years
- Valve: Diaphragm
- Bypass: Dual-Filtered Fixed Bypass Diaphragm (DFB)
- Valve Body Material: Semi-red Brass
- Fixture Type: Water Closet
- Fixture Connection: Top Spud
- Rough-In Dimension: 11.5" (292mm)
- Spud Coupling: 1.5" (38mm)
- Supply Pipe: 1" (25mm)
- Override: Electrical (OR)
- User friendly three second flush delay
- No external volume adjustment to ensure water conservation
- Stop seat and vacuum breaker molded from PERMEX® rubber compound for chloramine resistance
- Infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
| Brand | Sloan® |
| Case LxWxH | x x |
| Color | Polished Chrome |
| Cube | 0 |
| Packaging Put/Up | 1/ea |
| Pallet Ti x Hi x Qty | x x |
| Sell UOM LxWxH | EA - x x |
| Sell UOM Weight (lbs.) | 0 |
| Weight | 0 |
Safety Data Sheets
No Safety Data Sheets available for this product.
Technical Resources
| Name | Download | File type | |
|---|---|---|---|
|
|
Spec Sheet | 368 KB |
