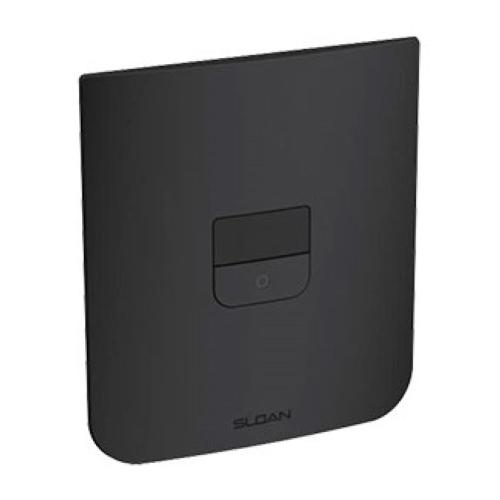

Sloan® CX 8198-0.125-GR Sensor Urinal Flushometer, 0.125 gpf, Graphite, 1/ea (3400324)

Item # 42727269

The Sloan CX 8198‑0.125‑GR (3400324) Concealed Sensor Urinal Flushometer delivers efficient, touch‑free flushing with a low 0.125 gallons‑per‑flush rate that meets EPA WaterSense® water‑efficiency standards. Featuring infrared sensor activation, a filtered piston valve, adjustable flush connection, and integrated control stop, it offers reliable hands‑free operation for commercial restrooms. Battery‑powered with hardwire option and vandal‑resistant graphite finish, this sensor flushometer enhances hygiene and reduces water use in high‑traffic facilities.

Price :

Request a Quote

Product Overview

Upgrade commercial restrooms with the Sloan CX 8198‑0.125‑GR (3400324) Concealed Sensor Urinal Flushometer, engineered for high efficiency and reliable, touch‑free performance. Designed for urinal installations, this sensor‑activated flushometer delivers a water‑saving 0.125 gpf (0.5 LPF) flush that helps cut utility costs and supports WaterSense® compliance. The concealed design with front‑accessible wall box simplifies maintenance, while the fixed‑volume piston with filtered bypass and adjustable flush connection ensures consistent function. Powered by a long‑life battery with an optional hardwired connection and equipped with an electronic override button and low battery indicator light, this unit combines hygiene, durability, and serviceability. Its graphite finish and vandal‑resistant wall plate make it ideal for schools, offices, healthcare facilities, and high‑traffic public restrooms seeking modern, hands‑free sanitation solutions that meet ADA and Green certification standards.

Features

Fixed volume piston with filtered O-ring bypass
Front access wall plate requires no rear access plumbing chase
Sensor activated, hands-free operation
Battery operated with hardwired option
Electronic override button
Low battery indicator light
Vandal resistant wall plate
Adjustable flush connection
Details:
Flush Volume: 0.125 gpf (0.5 lpf)
Finish: Graphite (GR)
Power Type: Battery with Hardwired Option
Valve: Piston
Bypass: Filtered
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
Fixture Connection: Rear Spud
Rough-in Dimension: 12.625” (321mm)
Spud Coupling: 0.75” (19mm)
Dimension: 3.25”-4.25” (83-108mm)
Override: Electrical
Wall Box: Front Accessible
Control Stop: Integrated
Vacuum Breaker: Short V500A & Adjustable Flush Connection
Outlet Tube: Adjustable Flush Connection

Brand	Sloan®
Case LxWxH	x x
Color	Graphite
Cube	0
UPC	671254491335
Packaging Put/Up	1/ea
Pallet Ti x Hi x Qty	x x
Sell UOM LxWxH	EA - x x
Sell UOM Weight (lbs.)	2.36
Weight	2.36
