Sloan® CX 198-0.25 Front Accessible Wall Box, CX Concealed Manual Urinal Flushometer, 0.25 gpf, Polished Chrome, 1/ea

Product Overview

Optimize your commercial restroom with the Sloan CX 198-0.25-CP Concealed Manual Urinal Flushometer, engineered for water-efficient performance at just 0.25 gallons per flush. This concealed unit features a polished chrome finish and rear spud connection for sleek integration behind the wall. Its front-accessible wall box and integrated control stop simplify maintenance, while the ADA-compliant push button ensures easy use for all occupants. Built with a filtered O-ring bypass piston valve and durable semi-red brass body, this flushometer offers reliable operation and long-lasting durability. Adjustable flush connection outlet and short V500A vacuum breaker enhance installation flexibility. Designed to meet key industry certifications and withstand high-traffic use, it’s an ideal solution for commercial properties seeking dependable performance and water savings.

Features

• Details:
       Flush Volume: 0.25 gpf (0.9 lpf)
       Finish: Polished Chrome (CP)
       Valve: Piston
       Bypass: Filtered
       Valve Body Material: Semi-red Brass
       Fixture Type: Urinal
       Fixture Connection: Rear Spud
       Rough-in Dimension: 12.625” (321mm)
       Spud Coupling: 0.75” (19mm)
       Supply Pipe: 0.75” (19mm)
       L Dimension: 3.25”-4.25” (83-108mm)
       Wall Box: Front Accessible
       Push Button: ADA Compliant
       Control Stop: Integrated
       Vacuum Breaker: Short V500A & Adjustable Flush Connection
       Outlet Tube: Adjustable Flush Connection

• Fixed volume piston with filtered O-ring bypass
• Front access wall plate requires no rear access plumbing chase

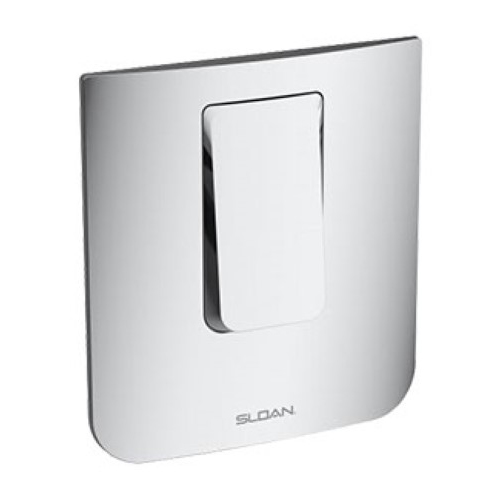

• ADA compliant push button
• Vandal resistant wall plate
• Adjustable flush connection
• 8 1⁄2”(W) x 9 1⁄4”(H) Wall Box Panel Dimension
