Sloan® CX 198 Manual Urinal Flushometer, 0.5 gpf, Black, 1/ea

Product Overview

The Sloan CX 198-0.5-BLK Concealed Manual Urinal Flushometer (3400218) is engineered for efficient, reliable performance in demanding commercial restrooms. Delivering a water-saving 0.5 gallons per flush, this flushometer combines a rugged semi-red brass body with a stylish black wall plate to seamlessly integrate into modern facilities while meeting ADA compliance. Its piston-type valve uses a filtered O-ring bypass for smooth, consistent flushing, and includes an integrated control stop, adjustable flush connection outlet tube, and a short V500A vacuum breaker for optimal protection. The front-accessible wall box and vandal-resistant design allow convenient maintenance without rear access plumbing chase. Ideal for high-traffic urinal installations, this flushometer blends durability, water efficiency, and ease of service.

Features

• Fixed volume piston with filtered O-ring bypass
• Front access wall plate requires no rear access plumbing chase
• ADA compliant push button
• Vandal resistant wall plate
• Adjustable flush connection
• Details:
       Flush Volume: 0.5 gpf (1.9 Lpf)
       Finish: Rough Brass (RB)

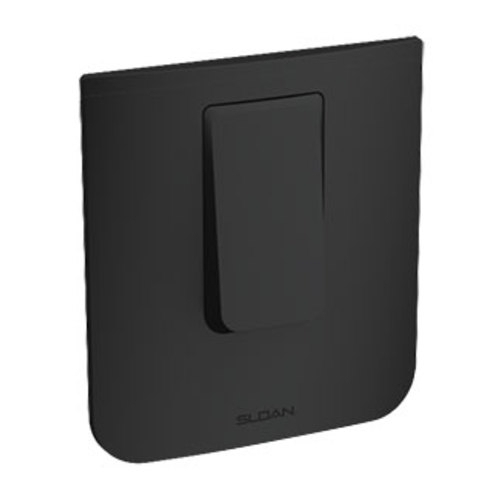

       Wall Plate Finish: Black (BLK)
       Valve: Piston
       Bypass: Filtered
       Valve Body Material: Semi-red Brass
       Fixture Type: Urinal
       Fixture Connection: Rear
       Rough-In Dimension: 12 ⅝" (321mm)
       Spud Coupling: ¾" (19mm)
       Supply Pipe: ¾" (19mm)
       L Dimension: 3 ¼" – 4 ¼" (83 – 108mm)
       Wall Box: Front Accessible
       Push Button: ADA Compliant
       Control Stop: Integrated
       Vacuum Breaker: Short V500A & Adjustable Flush Connection
       Outlet Tube: Adjustable Flush Connection
