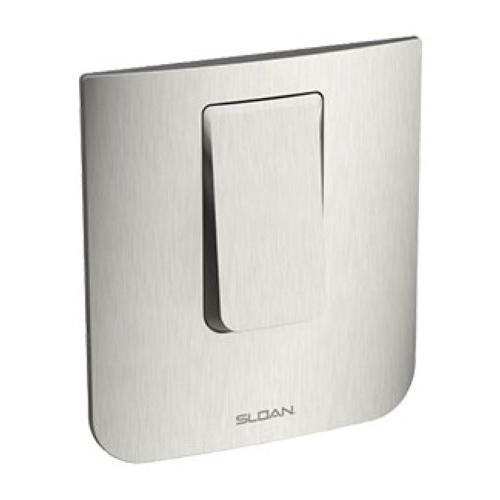

Sloan® CX 198 Concealed Manual Urinal Flushometer, 0.5 gpf, Brushed Nickel, 1/ea (3400210)

Product Overview

The Sloan CX 198-0.5-BN Manual Concealed Urinal Flushometer (3400210) is engineered for commercial restroom applications where reliable performance and water conservation are priorities. Operating at just 0.5 gallons per flush, this piston-type flushometer features a filtered O-ring bypass that promotes consistent flushing while maximizing efficiency. Its brushed nickel finish and durable semi-red brass construction offer long-lasting durability. The unit includes an ADA-compliant push button, integrated control stop, short V500A with adjustable flush connection vacuum breaker, and adjustable outlet tube for flexible installation. Designed with a front-accessible wall box and vandal-resistant wall plate, this model enables easy service access without requiring plumbing chase entry, cutting down maintenance time and labor. Ideal for high-traffic commercial spaces, this concealed manual flushometer combines performance, compliance, and ease of maintenance in one compact solution.

Features

• Fixed volume piston with filtered O-ring bypass
• Front access wall plate requires no rear access plumbing chase
• ADA compliant push button
• Vandal resistant wall plate
• Adjustable flush connection
• 8.5”(W) x 9.25”(H) wall box panel dimension
• Details:
       Flush Volume: 0.5 gpf (1.9 lpf)
       Finish: Brushed Nickel (BN)
       Valve: Piston
       Bypass: Filtered
       Valve Body Material: Semi-red Brass
       Fixture Type: Urinal
       Fixture Connection: Rear Spud
       Rough-in Dimension: 12.625” (321mm)
       Spud Coupling: 0.75” (19mm)
       Supply Pipe: 0.75” (19mm)
       L Dimension: 3.25”-4.25” (83-108mm)
       Wall Box: Front Accessible
       Push Button: ADA Compliant
       Control Stop: Integrated
       Vacuum Breaker: Short V500A & Adjustable Flush Connection
       Outlet Tube: Adjustable Flush Connection
