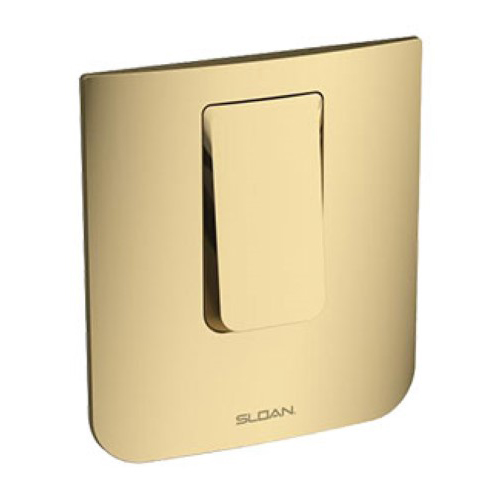

Sloan® CX 198 Concealed Manual Urinal Flushometer, 0.5 gpf, Polished Brass, 1/ea (3400214)

Product Overview

The Sloan CX 198-0.5-PB Manual Flushometer (3400214) is a premium concealed flush valve engineered for water efficiency and durability in commercial restroom environments. With a 0.5 gallon-per-flush (GPF) volume, polished brass finish and robust semi-red brass valve body, this unit ensures long-lasting performance and corrosion resistance. Its integrated control stop, front-accessible wall box and ADA-compliant push button deliver easy maintenance and universal accessibility. The adjustable flush connection and rear spud make installation flexible, while the filtered piston valve and adjustable vacuum breaker help ensure reliable, consistent flushing. Ideal for high-traffic urinal installations where performance, compliance and style matter.

Features

• Details:
       Flush Volume: 0.5 gpf (1.9 lpf)
       Finish: Polished Brass (PB)
       Valve: Piston
       Bypass: Filtered
       Valve Body Material: Semi-red Brass
       Fixture Type: Urinal
       Fixture Connection: Rear Spud
       Rough-in Dimension: 12.625” (321mm)
       Spud Coupling: 0.75” (19mm)
       Supply Pipe: 0.75” (19mm)
       L Dimension: 3.25”-4.25” (83-108mm)
       Wall Box: Front Accessible
       Push Button: ADA Compliant
       Control Stop: Integrated
       Vacuum Breaker: Short V500A & Adjustable Flush Connection
       Outlet Tube: Adjustable Flush Connection

• Fixed volume piston with filtered O-ring bypass
• Front access wall plate requires no rear access plumbing chase
• ADA compliant push button
• Vandal resistant wall plate
• Adjustable flush connection
• 8.5”(W) x 9.25”(H) wall box panel dimension
