Product Overview

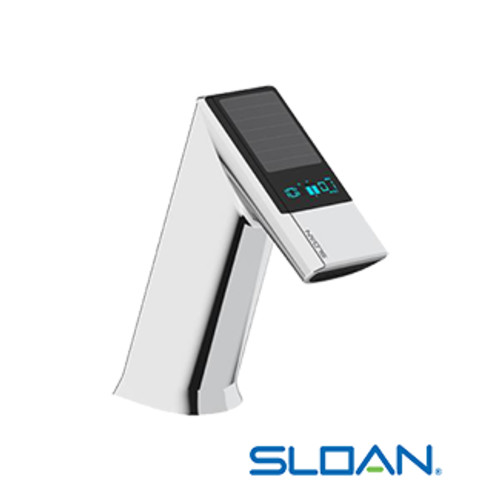

Upgrade commercial wash stations with the Sloan 3324034 BASYS® Solar-Powered Deck-Mounted Faucet, a premium sensor-activated fixture designed for durability and water efficiency. This polished chrome, mid-body faucet features a 1.5 GPM aerated spray with optional laminar nozzle, double infrared sensors with automatic setting, and an integrated side mixer for precise temperature control. Powered primarily by solar energy with battery backup, it offers sustainable, touchless operation that enhances hygiene and reduces maintenance costs. Above-deck serviceable components—including a removable solenoid carrier with supply strainer and diagnostic indicators for battery and solenoid health—simplify upkeep. Constructed with stainless steel, engineered thermoplastic, EPDM, and copper alloy parts, this ADA-compliant faucet withstands heavy use while maintaining consistent performance in commercial, institutional, or public restrooms.
Features
- Details:Flow Rate: 1.5 gpm (6 Lpm) (1.5GPM)Spray Type: Aerated (AER)Sensor Type: Infrared (IR)Mounting Type: Single HolePower Supply: Solar (SOL)Temperature Mixer: Integrated Side Mixer (ISM)Finish: Polished Chrome (CP)Factory Default Timeout: 10sFactory Default GPC: 0.75
- One tool service
- All wetted components to be stainless steel, engineered thermoplastic, EPDM, and copper or copper alloy
- Solenoid housed in removable carrier that includes supply strainer
- Integral water supply shut off
- Supply strainer serviceable from above deck
- Vandal resistant spray insert, key housed inside faucet body
- All electronics sealed to IP-212
- Gold plated electrical contacts
- Above deck individual diagnostic indicators for battery life, solenoid condition, and power up mode
- Flexible, high pressure supply hoses, 3/8” compression connections
- Bi-stable magnetic solenoid
- Four (4) “AA” alkaline batteries
- Double infrared sensors with automatic setting feature
- Includes all mounting hardware
- Line purge mode, eliminates stagnant water
- Adjustable time-outs
| Brand | Sloan® |
| Case LxWxH | x x |
| Color | Polished Chrome |
| Cube | 0 |
| Packaging Put/Up | 1/ea |
| Pallet Ti x Hi x Qty | x x |
| Sell UOM LxWxH | EA - x x |
| Sell UOM Weight (lbs.) | 5 |
| Weight | 5 |
