Product Overview

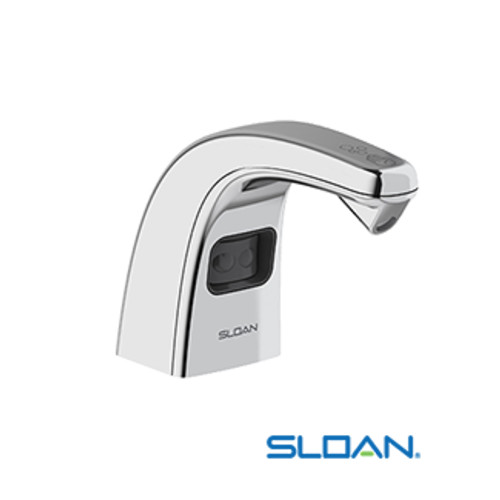

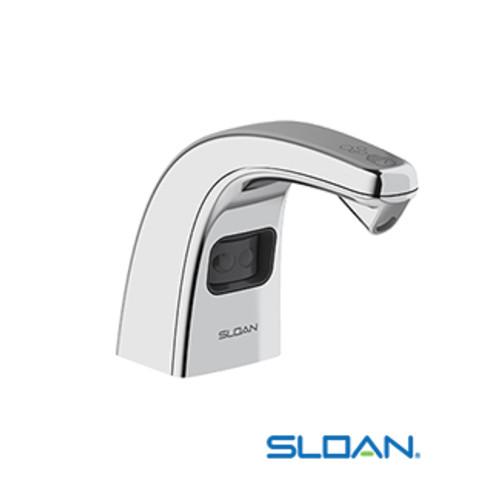

The Sloan ESD-600 Sensor Activated Foam Soap Dispenser (3346091) is a premium automatic soap dispenser engineered for modern commercial and high-traffic restroom environments. Sensor activated for true hands-free operation, this deck-mounted foam dispenser delivers a consistent, pre-measured soap application that promotes hygiene and reduces waste. Its modular, chrome-plated die-cast construction offers durability and sleek design that complements Sloan’s electronic faucet series. The sealed electronics and 360° rotating motor assembly ensure reliable performance and easy installation. Each unit ships with two 1,500 ml bottles of non-scented, non-colored foam soap and a battery pack capable of approximately 45,000 activations, minimizing refills and maintenance. With a nominal 5″ sensor range and optional AC adaptor availability, this ADA-compliant dispenser enhances user experience while supporting efficient facility operations.
Features
- Details:
Finish: Polished Chrome (CP)
Power Type: Battery
Height: 4" (102mm)
Width: 2" (51mm)
Depth: 5-1/5" (132mm)
Sensor Type: IR - Modular one-piece construction easily attaches to deck surface
- All electronics in spout are sealed
- Designed for drip free foam dispensing operation
- Motor assembly suspended under counter connected to soap dispenser spout
- Motor assembly rotates 360 degrees for easy installation
- Battery life of 45,000 activations
- 1,500 dispenses per foam soap bottle
- Ships with 2 bottles of non-scented, non-colored foam soap (1500ml per bottle)
- Additional foam soap can be purchased through Sloan (ESD-325) or GOJO distribution (8565-04-N6300GN)
- Ships with battery pack (4 "D" Alkaline batteries included)
- Sensor range - nominal 5"
- GFI outlet suggested per code
- 120V/15 Amp
- Optional AC adaptor can be purchased separately (part number 0346090)
| Brand | Sloan® |
| Case LxWxH | x x |
| Color | Polished Chrome |
| Cube | 0.02 |
| Packaging Put/Up | 1/ea |
| Pallet Ti x Hi x Qty | x x |
| Sell UOM LxWxH | EA - 5.2 x 2 x 4 |
| Weight | 0 |
Safety Data Sheets
No Safety Data Sheets available for this product.
Technical Resources
| Name | Download | File type | |
|---|---|---|---|
|
|
Installation Guide | 590 KB | |
|
|
Spec Sheet | 120 KB |
