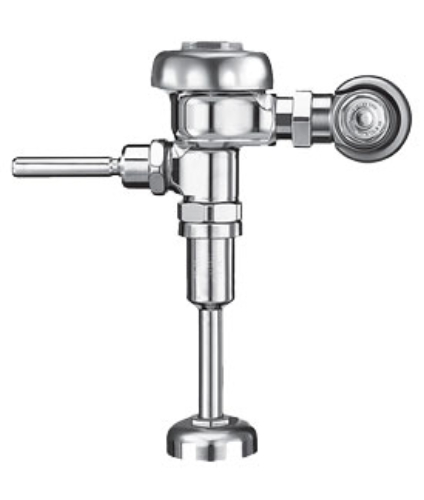

Sloan® 186-1.5-XL Regal® Exposed Manual Urinal Flushometer, 1.5 gpf, Polished Chrome, 1/ea

Product Overview

The Sloan REGAL® 186-1.5-XL-CP Exposed Manual Urinal Flushometer offers commercial facilities a high-performance solution with a polished chrome finish and a 1.5 gpf (5.7 Lpf) flush volume that balances water efficiency and powerful flushing. Featuring a top-spud fixture connection and an XL sweat solder adapter kit, this flushometer is built for robust operation and installation flexibility. Its ADA-compliant metal oscillating non-hold-open handle and Para-Flo™ technology ensure consistent, low-consumption flush accuracy, while semi-red brass construction and a vandal-resistant stop cap promote long-lasting durability. Designed for demanding public-use environments, it meets cUPC, IAPMO, ADA and BAA compliance standards.

Features

• Details:
       Flush Volume: 1.5 gpf (5.7 lpf)
       Finish: Polished Chrome (CP)
       Valve: Diaphragm
       Valve Body Material: Semi-red Brass
       Fixture Type: Urinal
       Fixture Connection: Top Spud
       Rough-in Dimension: 11.5” (292mm)
       Spud Coupling: 0.75” (19mm)
       Supply Pipe: 0.75” (19mm)
       Adapter: XL Sweat Solder Adapter Kit (XL)

• Water conservation is aided by the ADA-compliant, non-hold open handle, which prevents urinal from exceeding intended flush volume
• Low consumption flush accuracy controlled by Para-Flo™ technology
• Integrity of the product is maintained with control stop plug
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece
• Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
• Valve shall be in compliance to the applicable sections of ASSE 1037
