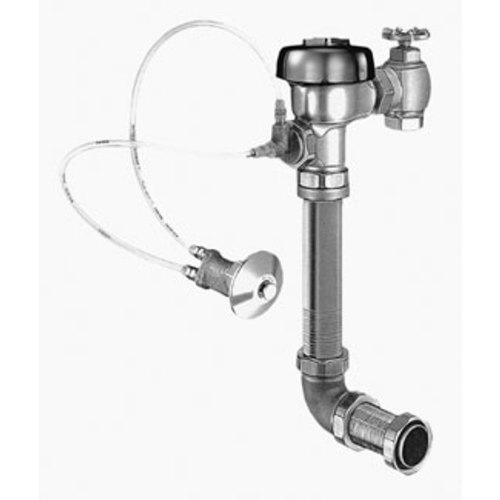

Sloan® 9603-3.5-XL Regal® Concealed Manual Specialty Water Closet Hydraulic Flushometer, 3.5 gpf, Rough Brass, 1/ea

Item # 3988143

Sloan® 9603-3.5-XL Regal® Concealed Manual Specialty Water Closet Hydraulic Flushometer, 3.5 gpf, Rough Brass, 1/ea
The Sloan Regal® 9603-3.5-XL-RB Hydraulic Concealed Flushometer delivers dependable, water-efficient performance with a 3.5 gpf (13.2 Lpf) flush and rugged rough brass finish. Designed for rear spud water closet installations, this diaphragm-type manual flushometer features an XL sweat solder adapter kit and semi-red brass construction for durability. Built to resist chloramine corrosion and comply with BAA, UPC and IAPMO standards, it’s ideal for high-use commercial and institutional restrooms.
Unit: Each
$272.48 per Each

Product Overview

The Sloan Regal® 9603-3.5-XL-RB Hydraulic Concealed Flushometer is engineered for reliable, robust performance in commercial and institutional water closet applications. This manual flushometer delivers a consistent 3.5 gallons-per-flush (13.2 Lpf) and is built with diaphragm technology and a semi-red brass valve body to ensure long-lasting service life. The concealed hydraulic design offers an aesthetically clean look behind the wall while providing enhanced vandal resistance and durability, ideal for high-traffic environments. Its rough brass finish and XL sweat solder adapter kit support flexible installation options with rear spud connections. The PERMEX® rubber-molded diaphragm, handle packing, stop seat and vacuum breaker resist chloramine corrosion, while adjustable tailpiece accommodations simplify installation. Certified to meet BAA, UPC and IAPMO standards, this flushometer combines dependable functionality with water efficiency and code compliance for demanding commercial spaces.

Features

  • Details:
         Flush Volume: 3.5 gpf (13.2 lpf)
         Finish: Rough Brass (RB)
         Valve: Diaphragm
         Valve Body Material: Semi-red Brass
         Fixture Type: Water Closet
         Fixture Connection: Rear Spud
         Rough-in Dimension: 16” (406mm)
         Spud Coupling: 1.5” (38mm)
         Supply Pipe: 1” (25mm)
         Adapter: XL Sweat Solder Adapter Kit (XL)
  • Royal®, Regal® and Sloan® Prison Flushometers feature all the performance benefits of standard concealed, diaphragm model Flushometers with added durability to withstand rough environments
  • Diaphragm, handle packing, stop seat and vacuum breaker molded from PERMEX® rubber compound for chloramine resistance
  • Vandal-proof, push button operation with ADA-compliant fixture wall or panel-mount actuator options on select models
  • Non-hold-open feature keeps fixture from surpassing intended water consumption
  • Adjustable tailpiece accommodates various installations
  • Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
  • Valve shall be in compliance to the applicable sections of ASSE 1037
Brand Sloan®
Sub-Brand Regal®
Case LxWxH x x
Color Rough Brass
Cube 0
UPC 671254118768
Packaging Put/Up 1/ea
Pallet Ti x Hi x Qty x x
Sell UOM LxWxH EA - 1 x 1 x 1
Sell UOM Weight (lbs.) 8.92
Weight 0

Safety Data Sheets

No Safety Data Sheets available for this product.


Technical Resources

  Name Download File type
Spec Sheet
Spec Sheet 245 KB PDF
