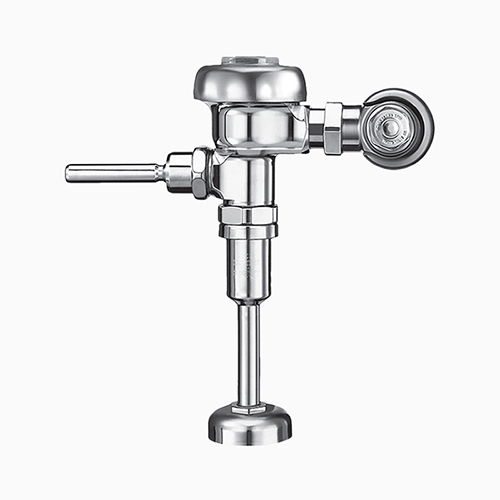

Sloan® 186-0.5-XL Regal® Exposed Manual Urinal Flushometer

Item # 42729413

Sloan® 186-0.5-XL Regal® Exposed Manual Urinal Flushometer
The Sloan Regal® 186-0.5-XL-CP Manual Flushometer is a polished chrome, high-efficiency urinal flush valve designed for commercial applications. With an ultra-low 0.5 gpf (1.9 Lpf) flush volume, this exposed manual flushometer conserves water while delivering reliable performance. Built with semi-red brass construction, an ADA-compliant non-hold-open handle, Para-Flo™ flush accuracy and adjustable tailpiece, it meets ADA, BAA, cUPC and WaterSense standards for sustainable restroom installations.
$159.35

Product Overview

The Sloan Regal® 186-0.5-XL-CP Manual Urinal Flushometer offers ultra-low water usage and dependable flushing performance for high-traffic commercial restrooms. Featuring a polished chrome finish and 0.5 gallons per flush (1.9 liters), this exposed flushometer helps reduce water consumption while maintaining powerful flush action. Designed with semi-red brass valve body, cover, tailpiece and control stop for durability and dezincification resistance, it includes an ADA-compliant non-hold-open handle to prevent over-flushing and Para-Flo™ technology for consistent low-consumption performance. The flushometer also provides an adjustable tailpiece and robust diaphragm valve for long service life. Certified to meet ADA, BAA, cUPC Green and WaterSense criteria, the Regal 186-0.5-XL-CP is ideal for sustainable restroom construction, renovation projects and facilities seeking reduced water usage and reliable manual flush control.

Features

  •  Details:
         Flush Volume: 0.5 gpf (1.9 lpf)
         Finish: Polished Chrome (CP)
         Valve: Diaphragm
         Valve Body Material: Semi-red Brass
         Fixture Type: Urinal
         Fixture Connection: Top Spud
         Rough-in Dimension: 11.5” (292mm)
         Spud Coupling: 0.75” (19mm)
         Supply Pipe: 0.75” (19mm)
         Control Stop: 1”
         Adapter: XL Sweat Solder Adapter Kit (XL)
  • Flush volumes start as low as 0.5 gpf/1.9 Lpf
  • Water conservation is aided by the ADA-compliant, non-hold open handle, which prevents urinal from exceeding intended flush volume
  • Low consumption flush accuracy controlled by Para-Flo™ technology
  • Integrity of the product is maintained with control stop plug
  • Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
  • Adjustable tailpiece
  • Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
  • Valve shall be in compliance to the applicable sections of ASSE 1037
Brand Sloan®
Sub-Brand Regal®
Case LxWxH x x
Color Polished Chrome
Cube 0
UPC 671254423251
Packaging Put/Up 1/ea
Pallet Ti x Hi x Qty x x
Sell UOM LxWxH EA - x x
Sell UOM Weight (lbs.) 6.49
Weight 6.49
