- Sloan Royal 110 (3010100) Flush Valve for Toilets 3.5 gpf/13
You are not logged in
Please log in to continue or proceed as a guest.
Product Overview

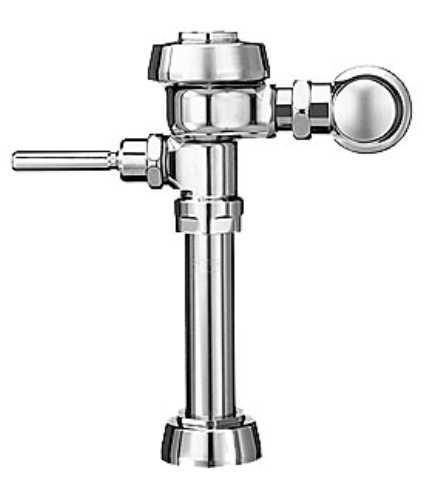

The Sloan ROYAL 110 (3010100) Royal® Manual Flushometer is a top choice for commercial restroom applications that demand dependable flushing performance and long-lasting durability. Delivering a consistent 3.5 gallons per flush, this polished chrome finish flush valve is ideal for exposed water closet installations with a top spud connection. Constructed with a semi-red brass body and advanced PERMEX® synthetic rubber diaphragm with dual filtered bypass, it ensures water efficiency and resistance to wear. Featuring CID™ technology for flush accuracy, an ADA-compliant non-hold-open handle and a vandal-resistant stop cap, this flushometer meets rigorous industry certifications for quality and reliability. Perfect for high-traffic facilities seeking water conservation without compromising performance.
Features
- Details:
Flush Volume: 3.5 gpf (13.2 Lpf)
Finish: Polished Chrome (CP)
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top Spud
Rough-In Dimension: 111/2" (292mm)
Spud Coupling: 11/2" (38mm)
Supply Pipe: 1" (25mm) - Flush volumes start as low as 3.5 gpf/13.2 Lpf
- Water conservation is aided by the ADA-compliant, non-hold open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX® synthetic rubber diaphragm with dual filtered fixed bypass
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
- ADA compliant
| Brand | Sloan® |
| Sub-Brand | Royal® |
| Case LxWxH | x x |
| Color | Polished Chrome |
| Cube | 0.25 |
| Packaging Put/Up | 1/ea |
| Pallet Ti x Hi x Qty | x x |
| Sell UOM LxWxH | EA - 10.5 x 9.3 x 4.35 |
| Sell UOM Weight (lbs.) | 8 |
| Weight | 8 |
Safety Data Sheets
No Safety Data Sheets available for this product.
Technical Resources
| Name | Download | File type | |
|---|---|---|---|
|
|
Spec Sheet | 283 KB |
