  3. Sloan Royal 110 YO (3010109) Flush Valve for Toilets 3.5 gpf

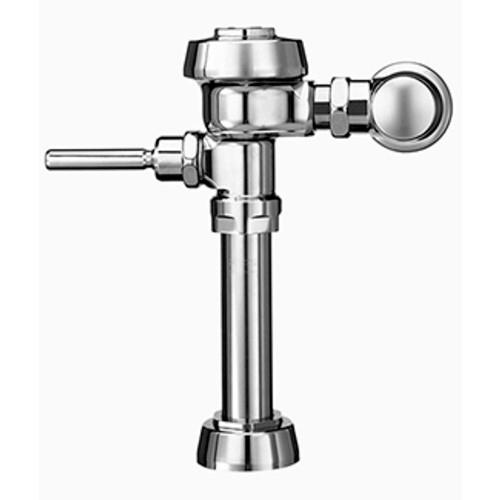

Sloan® 110-3.5-YO Royal® Exposed Manual Water Closet Flushometer, 3.5 gpf, Polished Chrome, 1/ea

Item # 3010109

Sloan® 110-3.5-YO Royal® Exposed Manual Water Closet Flushometer, 3.5 gpf, Polished Chrome, 1/ea
Optimize commercial restroom performance with the Sloan Royal® 3010109 Manual Exposed Flushometer. Engineered for top-spud water closets, it delivers a 3.5 gpf flush with a polished chrome finish and durable semi-red brass construction. Featuring an ADA-compliant non-hold-open handle, PERMEX® diaphragm, adjustable tailpiece and vandal-resistant stop cap, it ensures reliable flushing and water conservation. Ideal for busy facilities seeking long-lasting, efficient comfort solutions.
Unit: Each
$191.75 per Each

Product Overview

The Sloan Royal® 3010109 Manual Exposed Flushometer delivers dependable performance and durability for commercial water closet installations. With a 3.5 gallons-per-flush cycle and polished chrome finish, this top-spud flush valve features a diaphragm mechanism built from rugged semi-red brass for long service life. Water savings are boosted by an ADA-compliant non-hold-open handle and CID™-controlled flush accuracy, while a PERMEX® synthetic rubber diaphragm with dual filtered fixed bypass ensures consistent performance. Additional features include an adjustable tailpiece for flexible installation and a vandal-resistant stop cap for enhanced security. Certified ADA, UPC, and BAA compliant, this flushometer is a reliable choice for schools, offices, and high-traffic public restrooms seeking efficiency, quality, and peace of mind.

Features

  • Details:
         Flush Volume: 3.5 gpf (13.2 lpf)
         Finish: Polished Chrome (CP)
         Valve: Diaphragm
         Valve Body Material: Semi-red Brass
         Fixture Type: Water Closet
         Fixture Connection: Top Spud
         Rough-in Dimension: 11.5” (292mm)
         Spud Coupling: 1.5” (38mm)
         Supply Pipe: 1” (25mm)
         Bumper: Angle Stop (YO)
  • Flush volumes start as low as 3.5 gpf/13.2 Lpf
  • Water conservation is aided by the ADA-compliant, non-hold open handle, which prevents toilet from exceeding intended flush volume
  • Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
  • Integrity of the product is maintained with the vandal-resistant stop cap
  • Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
  • Adjustable tailpiece
  • PERMEX® synthetic rubber diaphragm with dual filtered fixed bypass
  • Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
  • Valve shall be in compliance to the applicable sections of ASSE 1037
Brand Sloan®
Sub-Brand Royal®
Case LxWxH x x
Color Polished Chrome
Cube 0.25
UPC 671254018228
Packaging Put/Up 1/ea
Pallet Ti x Hi x Qty x x
Sell UOM LxWxH EA - 10.5 x 9.3 x 4.35
Sell UOM Weight (lbs.) 8
Weight 8

Safety Data Sheets

No Safety Data Sheets available for this product.


Technical Resources

  Name Download File type
Spec Sheet
Spec Sheet 277 KB PDF
