Product Overview

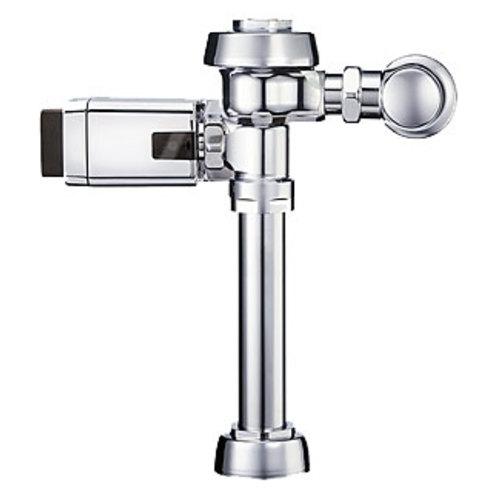

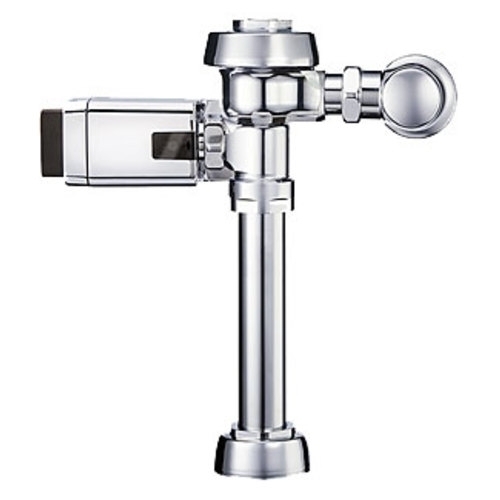

The Sloan Royal® 111 SFSM‑1.6 Sensor Flushometer (3910275) is a durable, polished chrome automatic flushing solution ideal for commercial water closet installations. With a 1.6 gallon‑per‑flush rate and battery‑powered infrared sensing technology, it delivers reliable touch‑free operation that improves restroom hygiene by reducing contact points. This exposed flushometer includes a true mechanical override button for manual flush control and a high‑chloramine‑resistant PERMEX® synthetic rubber diaphragm with dual filtered fixed bypass for dependable long‑term performance. Built with a rugged semi‑red brass valve body and compliant with ADA, BAA, and cUPC standards, it’s designed to withstand heavy use in public and institutional settings. The unit installs with a top spud fixture connection and offers adjustable sensor range, a low‑battery LED indicator, and a 72‑hour sentinel flush to maintain clear trap seals. Engineered for ease of maintenance and consistent water delivery, this sensor flushometer enhances restroom functionality while supporting water conservation efforts.
Features
- Details:Flush Volume: 1.6 gpf (6.0 lpf)Finish: Polished Chrome (CP)Power Type: BatteryValve: DiaphragmValve Body Material: Semi-red BrassFixture Type: Water ClosetFixture Connection: Top SpudRough-in Dimension: 11.5” (292mm)Spud Coupling: 1.5” (38mm)Supply Pipe: 1” (25mm)Override: True Mechanical (TMO)Control Stop: 1”Flush Connection: 1.5” (38mm)
- All organic rubber has been replaced with synthetic compounds
- Critical components, including cover, valve body, control stop and sweat solder kit, are made of semi-red brass
- PERMEX® synthetic rubber diaphragm with dual filtered fixed bypass
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
- Valve shall be in compliance to the applicable sections of ASSE1037
| Brand | Sloan® |
| Sub-Brand | Royal® |
| Case LxWxH | x x |
| Color | Polished Chrome |
| Cube | 0 |
| UPC | 671254412637 |
| Packaging Put/Up | 1/ea |
| Pallet Ti x Hi x Qty | x x |
| Sell UOM LxWxH | EA - x x |
| Sell UOM Weight (lbs.) | 10.3 |
| Weight | 0 |
Safety Data Sheets
No Safety Data Sheets available for this product.
Technical Resources
| Name | Download | File type | |
|---|---|---|---|
|
|
Spec Sheet | 218 KB |
