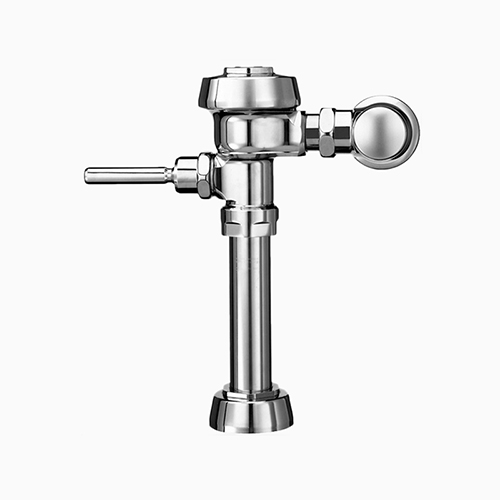

Sloan® ROYAL 111-1.6-CP-XYV Royal® Exposed Manual Water Closet Flushometer, Polished Chrome, 1/ea (3010035)

Item # 42726153

The Sloan 3010035 Royal® 111-1.6-CP Manual Flushometer is a polished-chrome exposed flush valve designed for commercial water closets with a reliable 1.6 gpf flush rate. Featuring a semi-red brass diaphragm valve body, non-hold-open handle for water savings, and PERMEX® synthetic rubber diaphragm with dual filtered bypass, it delivers consistent performance in high-traffic restrooms. ADA compliant with adjustable tailpiece and vandal-resistant stop cap for long-lasting durability.

Price :

Request a Quote

Product Overview

Enhance restroom efficiency with the Sloan 3010035 Royal® 111-1.6-CP Manual Flushometer, engineered for dependable flushing in commercial and institutional environments. This exposed manual flush valve features a polished chrome finish and rugged semi-red brass diaphragm valve body for corrosion resistance and long service life. Designed for top-spud water closet installations, it delivers a 1.6 gallons-per-flush (6.0 Lpf) cycle that supports water conservation goals. The ADA-compliant non-hold-open metal oscillating handle prevents excessive flushing, while CID™ technology helps maintain flush accuracy. Additional features include a PERMEX® synthetic rubber diaphragm with dual filtered fixed bypass for consistent performance, adjustable tailpiece for flexible installation, and a vandal-resistant stop cap to protect internal components. Ideal for high-traffic restrooms in schools, offices, healthcare facilities, and public buildings, this flushometer meets industry standards for quality and durability.

Features

Details:
Flush Volume: 1.6 gpf (6.0 lpf)
Finish: Polished Chrome (CP)
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top Spud
Rough-in Dimension: 11.5” (292mm)
Spud Coupling: 1.5” (38mm)
Supply Pipe: 1” (25mm)
Vacuum Breaker: Less (XYV)
Water conservation is aided by the ADA-compliant, non-hold open handle, which prevents toilet from exceeding intended flush volume
Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
Integrity of the product is maintained with the vandal-resistant stop cap
Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
Adjustable tailpiece
PERMEX® synthetic rubber diaphragm with dual filtered fixed bypass
Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
Valve shall be in compliance to the applicable sections of ASSE 1037

Brand	Sloan®
Sub-Brand	Royal®
Case LxWxH	x x
Color	Polished Chrome
Cube	0
UPC	671254018105
Packaging Put/Up	1/ea
Pallet Ti x Hi x Qty	x x
Sell UOM LxWxH	EA - x x
Sell UOM Weight (lbs.)	7.337
Weight	7.337
