Product Overview

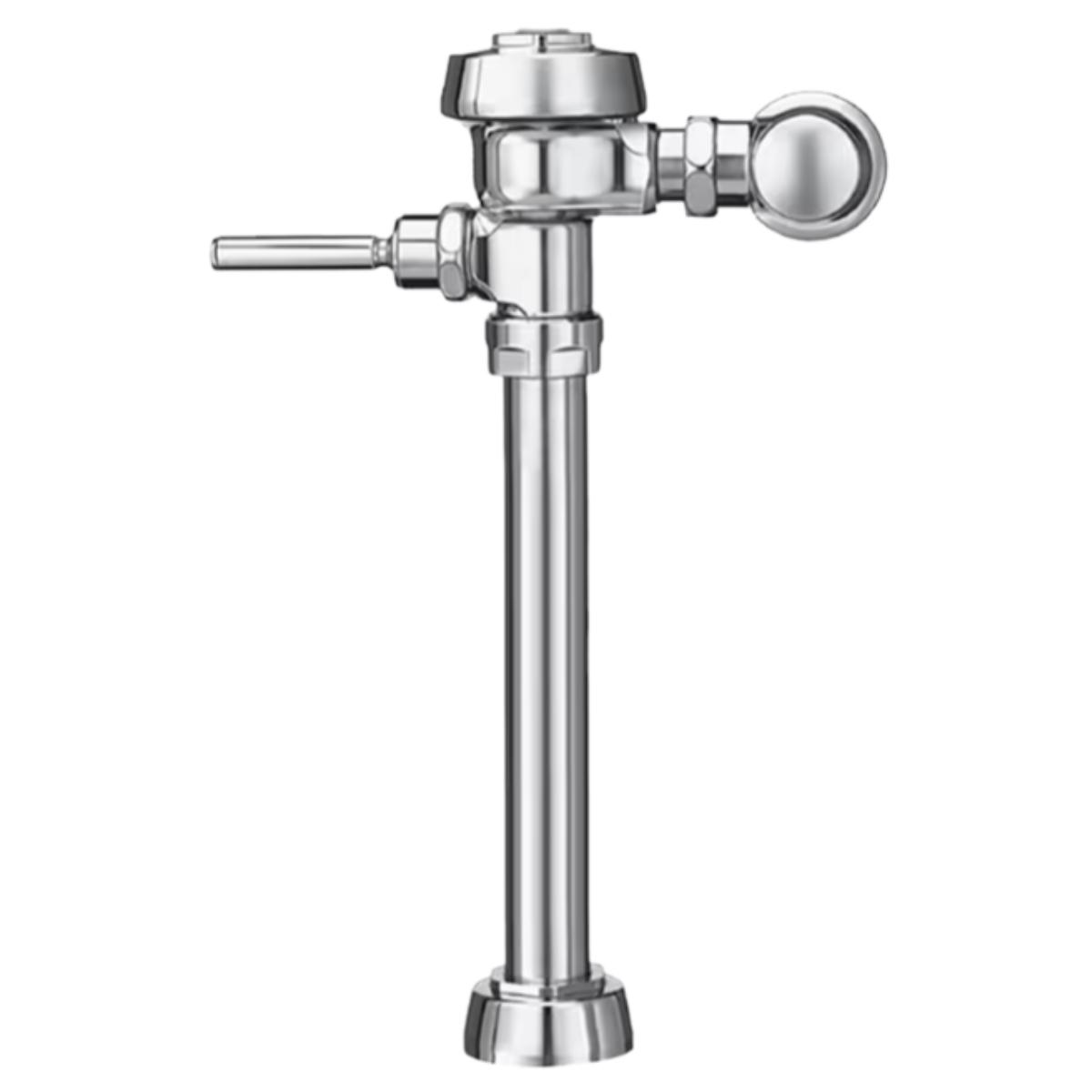

Engineered for commercial restroom performance, the Sloan ROYAL™ 113-3.5-CP Exposed Manual Water Closet Flushometer delivers a consistent 3.5 gallons-per-flush (13.2 Lpf) to ensure powerful, reliable flushing on floor-mounted or wall-hung top-spud toilets. Finished in polished chrome over rugged semi-red brass construction, this diaphragm-type flushometer uses advanced CID™ technology to control flush accuracy and improve water efficiency. The ADA-compliant metal non-hold-open handle prevents excessive flushing while helping conserve water. Additional durability features include a vandal-resistant free-spinning stop cap and an adjustable tailpiece that simplifies installation and maintenance. Designed to meet ADA, UPC, IAPMO and BAA certifications, this flushometer offers dependable performance, long service life and suitability for high-traffic commercial applications in education, healthcare, hospitality and business facilities.
Features
- Details:Flush Volume: 3.5 gpf (13.2 lpf)Finish: Polished Chrome (CP)Valve: DiaphragmValve Body Material: Semi-red BrassFixture Type: Water ClosetFixture Connection: Top SpudRough-in Dimension: 16” (406mm)Spud Coupling: 1.5” (38mm)Supply Pipe: 1” (25mm)
- Water conservation is aided by the ADA-compliant, non-hold open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
| Brand | Sloan® |
| Sub-Brand | Royal® |
| Case LxWxH | x x |
| Color | Polished Chrome |
| Cube | 0 |
| UPC | 671254018631 |
| Packaging Put/Up | 1/ea |
| Pallet Ti x Hi x Qty | x x |
| Sell UOM LxWxH | EA - x x |
| Weight | 0 |
Safety Data Sheets
No Safety Data Sheets available for this product.
Technical Resources
| Name | Download | File type | |
|---|---|---|---|
|
|
Spec Sheet | 245 KB |
