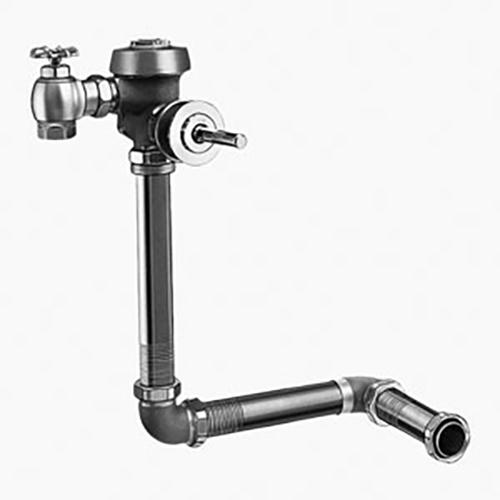

Sloan® ROYAL 143 Royal® Concealed Manual Water Closet Flushometer, 3.5 gpf, Rough Brass, 1/ea (3011360)

Product Overview

Install the Sloan ROYAL® 143-3.5-RB-8-3/4-LDIM Manual Concealed Flushometer (3011360) for dependable performance in commercial water closet applications. Designed with a rough brass finish and semi-red brass construction, this diaphragm-operated flushometer delivers a 3.5 gallon-per-flush (13.2 Lpf) cycle with a rear spud connection and 8.75″ L-Dimension for precise fit. Its ADA-compliant non-hold-open handle helps prevent over-flushing while CID™ technology ensures consistent flush accuracy that supports water conservation. Built for durability, the unit includes a vandal-resistant stop cap, adjustable tailpiece, and PERMEX® synthetic rubber diaphragm with dual filtered fixed bypass. Rated for 15-80 psi operating pressure and compliant with key industry standards including ADA, BAA, IAPMO, and UPC, this concealed flushometer is ideal for high-traffic commercial restroom environments seeking reliable, efficient performance.

Features

• Details:
       Flush Volume: 3.5 gpf (13.2 lpf)
       Finish: Rough Brass (RB)
       Valve: Diaphragm
       Valve Body Material: Semi-red Brass
       Fixture Type: Water Closet
       Fixture Connection: Rear Spud
       Rough-in Dimension: 14.5” (368mm)
       Spud Coupling: 1.5” (38mm)
       Supply Pipe: 1” (25mm)
       L Dimension: 8.75” (222mm) (8-3/4-LDIM)

• Flush volumes start as low as 1.28 gpf/4.8 Lpf
• Water conservation is aided by the ADA-compliant, non-hold open handle, which prevents toilet from exceeding intended flush volume
• Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
• Integrity of the product is maintained with the vandal-resistant stop cap
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece
• PERMEX® synthetic rubber diaphragm with dual filtered fixed bypass
• Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
• Valve shall be in compliance to the applicable sections of ASSE 1037
• ADA compliant
