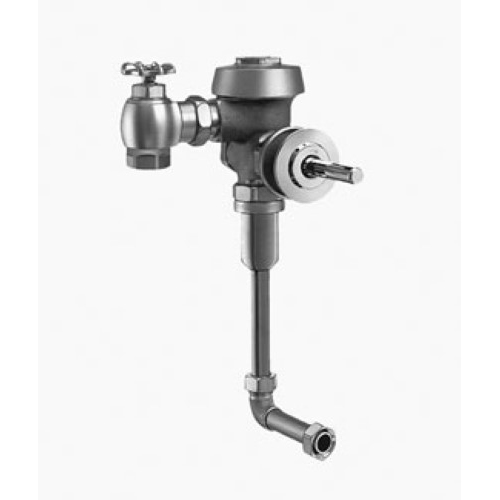

Sloan® 195-1.0 Royal® Concealed Manual Urinal Flushometer, 1.0 gpf, Rough Brass, 1/ea (3913285)

Product Overview

The Sloan Royal® 3913285 Manual Concealed Urinal Flushometer delivers dependable performance for commercial restrooms. Designed with a 1.0 gallon-per-flush (3.8 Lpf) cycle, this concealed valve fits rear-spud urinals using a ¾″ IPS connection and 8.75″ L dimension layout. Constructed of rugged semi-red brass and a diaphragm valve, it offers corrosion resistance and long service life. Water conservation is enhanced by an ADA-compliant non-hold-open handle and CID™ water-control technology to prevent over-flushing. The unit also includes an adjustable tailpiece and PERMEX® synthetic rubber diaphragm with dual filtered fixed bypass for consistent flush accuracy. Ideal for schools, offices, and high-traffic public facilities, this flushometer combines efficiency, durability, and ease of maintenance in a concealed design.

Features

• Details:
       Flush Volume: 1.0 gpf (3.8 lpf)
       Finish: Rough Brass (RB)
       Valve: Diaphragm
       Valve Body Material: Semi-red Brass
       Fixture Type: Urinal
       Fixture Connection: Rear Spud
       Rough-in Dimension: 13.5” (343mm)
       Spud Coupling: 0.75” (19mm)
       Supply Pipe: 0.75” (19mm)
       L Dimension: 8.75” (222mm) (8-3/4-LDIM)

• Water conservation is aided by the ADA-compliant, non-hold open handle, which prevents urinal from exceeding intended flush volume
• Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece
• PERMEX® synthetic rubber diaphragm with dual filtered fixed bypass
• Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
• Valve shall be in compliance to the applicable sections of ASSE 1037
