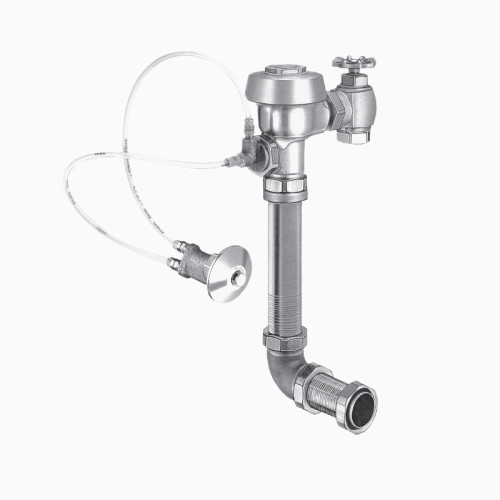

Sloan® ROYAL 9603 Royal® Concealed Manual Specialty Water Closet Hydraulic Flushometer, Rough Brass, 1/ea

Item # 3918249

The Sloan 3918249 Royal® 9603-1.28 Concealed Manual Specialty Flushometer is a high-performance, water-efficient flush valve for commercial water closets. Featuring a 1.28 gallons-per-flush rate and durable semi-red brass diaphragm valve body, it’s designed for reliable operation in institutional and public restrooms. With a rear spud connection, vacuum breaker, and ADA-compliant non-hold-open actuator (sold separately), it provides consistent flushing and long-lasting durability.

Unit: Each

Request a Quote

Product Overview

Upgrade your restroom with the Sloan 3918249 Royal® 9603-1.28 Concealed Manual Specialty Flushometer, engineered for dependable performance and water savings in commercial and institutional settings. This concealed flush valve delivers a controlled 1.28 gallons-per-flush (4.8 Lpf) cycle that helps reduce water use without sacrificing flushing power. Built with a robust semi-red brass diaphragm valve body and equipped with a reliable vacuum breaker, it ensures long-lasting durability and corrosion resistance. The unit installs with a rear spud fixture connection and includes a 1″ IPS inlet and 1½″ spud coupling for versatile compatibility. An ADA-compliant non-hold-open actuator enhances water efficiency, though the push button assembly is ordered separately. Designed to meet industry standards and perform reliably under frequent use, this Royal® flushometer is ideal for schools, offices, hospitals, and other high-traffic public restrooms seeking quality construction and water-efficient operation.

Features

Details:
Flush Volume: 1.28 gpf (4.8 lpf)
Finish: Rough Brass (RB)
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Rear Spud
Rough-in Dimension: 16” (406mm)
Spud Coupling: 1.5” (38mm)
Supply Pipe: 1” (25mm)
Royal®, Regal® and Sloan® Prison Flushometers feature all the performance benefits of standard concealed, diaphragm model Flushometers with added durability to withstand rough environments
Flush volumes as low as 1.28 gpf/4.8 Lpf meet water-efficiency goals
Choose from Flushometers intended for use with stainless-steel fixtures from various manufacturers
Diaphragm, handle packing, stop seat and vacuum breaker molded from PERMEX® rubber compound for chloramine resistance
Vandal-proof, push button operation with ADA-compliant fixture wall or panel-mount actuator options on select models
Non-hold-open feature keeps fixture from surpassing intended water consumption Adjustable tailpiece accommodates various installations
PERMEX® synthetic rubber diaphragm with dual filtered fixed bypass
Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
Valve shall be in compliance to the applicable sections of ASSE 1037

Brand	Sloan®
Sub-Brand	Royal®
Case LxWxH	x x
Color	Rough Brass
Cube	0
Packaging Put/Up	1/ea
Pallet Ti x Hi x Qty	x x
Sell UOM LxWxH	EA - 1 x 1 x 1
Sell UOM Weight (lbs.)	8.808
Weight	0
