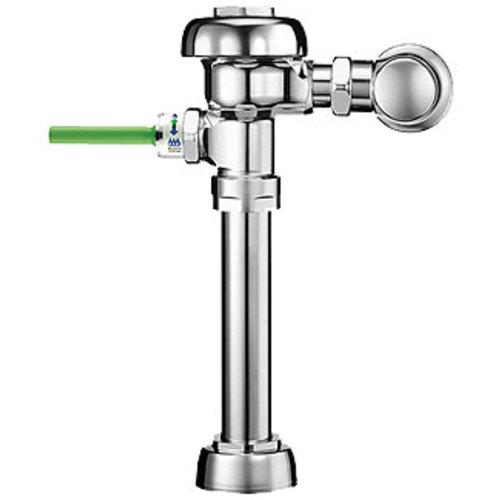

Sloan® WES 111-1.6/1.1 Exposed Manual Water Closet Flushometer, 1.6/1.1 gpf, Polished Chrome, 1/ea (3760000)

Product Overview

The Sloan WES-111 3760000 Dual-Flush Manual Exposed Flushometer is an efficient, water-saving solution for commercial restrooms that demand durable performance and reliability. With a polished chrome finish and dual flush capacities (1.6 gpf full flush and 1.1 gpf reduced flush), this top spud valve supports flexible water usage to help lower consumption without sacrificing performance. Built with a high chloramine-resistant PERMEX® synthetic rubber diaphragm, semi-red brass body, cover, tailpiece and control stop for corrosion resistance, it ensures long service life. The manual, exposed design is compliant with ADA, BAA, cUPC, IAPMO and WELL Building standards, making it ideal for high-traffic facilities. Featuring reliable diaphragm valve operation and robust construction, the WES-111 reduces maintenance needs and supports sustainable plumbing projects with dependable flush control.

Features

• Details:
       Flush Volume: 1.6/1.1 gpf (6.0 / 4.2 lpf)
       Finish: Polished Chrome (CP)
       Valve: Diaphragm
       Valve Body Material: Semi-red Brass
       Fixture Type: Water Closet
       Fixture Connection: Top Spud
       Rough-in Dimension: 11.5” (292mm)
       Spud Coupling: 1.5” (38mm)
       Supply Pipe: 1” (25mm)

• High chloramine resistant PERMEX® synthetic rubber diaphragm with linear filtered bypass and vortex cleansing action
• Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
• Valve shall be in compliance to the applicable sections of ASSE 1037
• Lifting handle up initiates reduced flush (1.1 gpf/4.2 Lpf), eliminating liquid and paper waste, saving a 1.2-gallon of water

• Pushing handle down initiates full flush (1.6 gpf/6.0 Lpf), eliminating all waste

• Metal non-hold-open handle with triple seal handle packing
• Sweat solder adapter with cover tube & cast wall flange with set screw
• Non-hold-open handle, fixed metering bypass and no external volume adjustment to ensure water conservation
• Diaphragm, handle packing and vacuum breaker to be molded from PERMEX® rubber compound for chloramine resistance
• Includes two (2) adhesive backed metal wall plates etched with instructions
