Product Overview

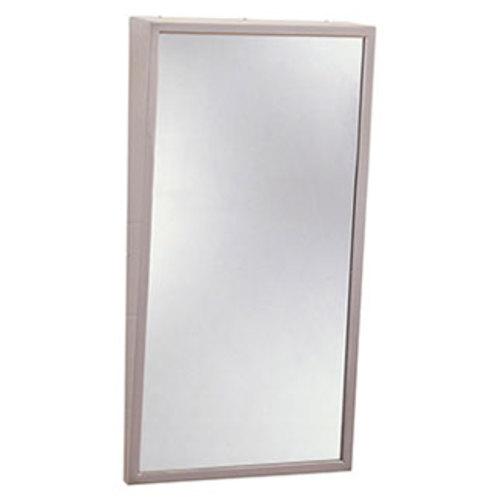

The Bobrick Fixed Tilt Mirror from the B-293 series is a premium commercial washroom tilt mirror engineered for accessibility and durability. Designed to provide optimal visibility for wheelchair users, this wall-mounted mirror features a robust Type 304 stainless steel frame with a satin finish and precision-welded, polished corners for long-lasting performance. The beveled frame edges create a gap-free fit for a cleaner look and easier maintenance, while the high-quality 6 mm (1/4″) glass mirror is warrantied against silver spoilage for 15 years. The tilt mirror extends outward from the wall—deeper at the top and tapering toward the bottom—ensuring practical viewing angles in healthcare, institutional, and commercial environments.
Features
- Available in the following sizes:B-293 1830: 18″ W x 30″ H (46 x 76cm)B-293 1836: 18″ W x 36″ H (46 x 91cm)B-293 2436: 24″ W x 36″ H (61 x 91cm)
- Provides visibility for patrons in wheelchairs
- Frame is composed of type 304 stainless steel, satin finish
- Beveled edges of frame hug mirror; provides gapless fit for improved appearance, and safety when cleaning mirror
- No. 1 quality, 1/4″ (6mm) glass mirror; warranted against silver spoilage for 15 years
- Mirror extends 4″ (100mm) from wall at top and tapers to 1″ (25mm) at bottom
| Brand | Bobrick |
| Case LxWxH | x x |
| Color | Satin Finish Stainless Steel |
| Cube | 0 |
| Packaging Put/Up | 1/ea |
| Pallet Ti x Hi x Qty | x x |
| Sell UOM LxWxH | EA - x x |
| Sell UOM Weight (lbs.) | 50 |
| Size | Various sizes available |
| Weight | 50 |
Safety Data Sheets
No Safety Data Sheets available for this product.
Technical Resources
| Name | Download | File type | |
|---|---|---|---|
|
|
Installation Guide | 234 KB | |
|
|
Spec Sheet | 134 KB |
