Product Overview

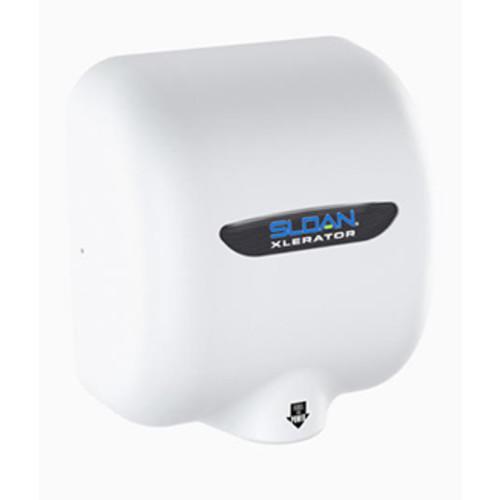

Upgrade your restroom with the Sloan 3366070 XLERATOR® Sensor-Operated Hand Dryer (EHD-501-MW), engineered for high-performance, touch-free hand drying in commercial and institutional spaces. Featuring a matte white finish and hardwired design, this reliable wall-mounted unit activates via an infrared optical sensor and delivers powerful airflow that dries hands in about 8 seconds while reducing waste and costs associated with paper towels by up to 95%. Its rugged one-piece rib-reinforced die cast housing resists vandalism and stands up to heavy use. With features like a 35-second lockout to prevent overheating, adjustable mounting for ADA compliance, and a visible LED for troubleshooting, this XLERATOR® dryer combines efficiency, durability, and hygiene in one premium bathroom solution.
Features
- Details:Finish: Matte White (MW)Voltage: 110/120VWattage: 50/60HzAmperage: 11.3A-12.2AMounting: Wall-MountedPower Type: HardwiredDepth: 12.688” (170mm)Height: 12.688” (322mm)Width: 11.75” (298mm)
- 8 second dry time
- 95% cost savings vs. paper towels
- Air temperature of up to 135°F (57°C) at a 72°F (22°C) ambient room temperature at the hands (4 inches [102 mm] below air outlet)
- Automatically operates by means of an infrared optical sensor with 35-second lockout feature, it activates a strong controlled air blast
- Can be easily positioned to comply with ADA requirements or for juvenile height
- Vandal resistant cover design
- Electric Specifications: 110-120V – 11.3-12.2 Amps, 1240-1450 Watts, 50/60 Hz, can install multiple units on one circuit
- Externally visible red LED light that flashes error codes to assist in troubleshooting and identify if filter has been clogged
- One-piece heavy-duty rib reinforced die cast zinc alloy housing minimizes damage to dryer in abusive environments
- Quantity Recommendations: 1 dryer for every 2 sink stations is sufficient for most applications
- Suggested mounting heights for ideal performance (from floor to bottom of dryer):Men: 45” (114 cm)Women: 43” (109 cm)Teenagers: 41” (104 cm)Children: 35” (89 cm)ADA: 37” (94 cm)Note: When mounting for any user ensure that it is mounted below the 48” ADA maximum
| Brand | Sloan® |
| Sub-Brand | XLERATOR® |
| Case LxWxH | x x |
| Color | Matte White |
| Cube | 0 |
| Packaging Put/Up | 1/ea |
| Pallet Ti x Hi x Qty | x x |
| Sell UOM LxWxH | EA - x x |
| Sell UOM Weight (lbs.) | 13 |
| Weight | 13 |
Safety Data Sheets
No Safety Data Sheets available for this product.
Technical Resources
| Name | Download | File type | |
|---|---|---|---|
|
|
Installation Guide | 1706 KB | |
|
|
Spec Sheet | 295 KB |
