Product Overview

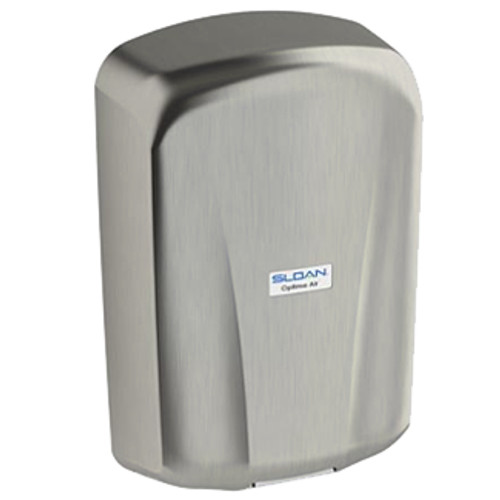

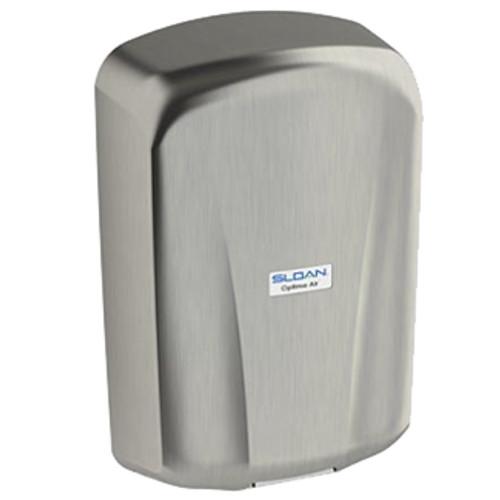

The Sloan Optima Air Hand Dryer EHD-701-BN (3366129) combines powerful performance, modern design, and energy efficiency in a commercial-grade hand-drying solution. Featuring a brushed nickel finish that enhances restroom aesthetics, this sensor-operated hand dryer delivers a hygienic, touch-free experience and dries hands in about 14 seconds, using 950 watts or less to help reduce operating costs and eliminate paper waste by roughly 95%. Adjustable settings for airflow speed, sound level, and heat allow facilities to tailor performance to their needs, while the ADA-compliant, low-profile design installs easily without a recess kit. Built-in features like an externally visible LED for troubleshooting, a 35-second lockout if hands remain too long, and a vandal-resistant cover make this dryer ideal for high-traffic commercial restrooms. Designed to be virtually maintenance-free, it offers reliable service and quality performance in offices, schools, restaurants, and more.
Features
- Hygienic hand drying solution, 14 second dry time
- Electric Specifications: 110-120V – 7-7.7 Amps, 770-915 Watts, 50/60 Hz, Can install multiple units on one circuit
- Meets ADA requirements without the need of a recess kit
- Adjustable speed and sound (High-Low), Adjustable Heat (High-Low-Off)
- 95% cost savings vs. paper towels
- Weight: 8-10 lbs.
- Vandal resistant cover design, virtually maintenance free
- Externally visible Red LED light that flashes error codes to assist in troubleshooting and identify if filter has been clogged
- Air temperature of up to 141°F (61°C) at a 72°F (22°C) ambient room temperature at the hands (4 inches [102 mm] below air outlet)
- 35-second lockout feature if hands are not removed
- Suggested mounting heights for ideal performance (from floor to bottom of dryer):
Men: 45” (114 cm)
Women: 43” (109 cm)
Teenagers: 41” (104 cm)
Children: 35” (89 cm)
ADA: 37” (94 cm)
Note: When mounting for any user ensure that it is mounted below the 48” ADA maximum
| Brand | Sloan® |
| Sub-Brand | Optima® |
| Case LxWxH | x x |
| Color | Brushed Nickel |
| Cube | 0 |
| UPC | 671254476073 |
| Packaging Put/Up | 1/ea |
| Pallet Ti x Hi x Qty | x x |
| Prop 65 | This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For further details, please visit www.p65warnings.ca.gov. |
| Sell UOM LxWxH | EA - x x |
| Sell UOM Weight (lbs.) | 9.5 |
| Weight | 9.5 |
Safety Data Sheets
No Safety Data Sheets available for this product.
Technical Resources
| Name | Download | File type | |
|---|---|---|---|
|
|
Installation Guide | 546 KB |
