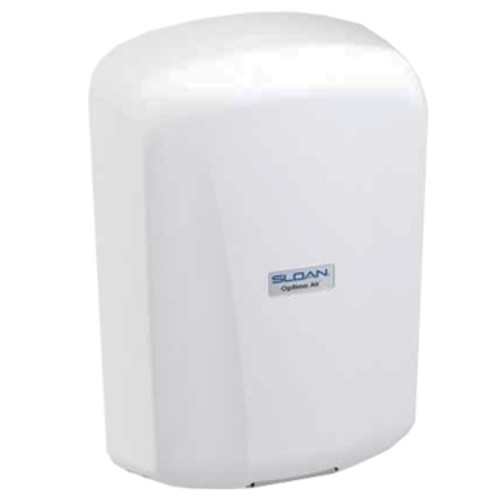

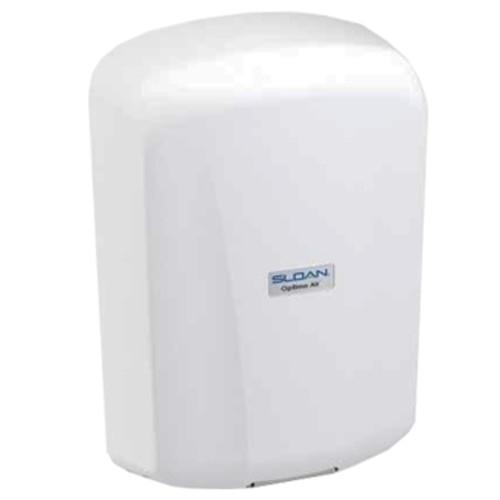

- EHD-701-PW Optima Sensor-Operated Wall Mount ADA Hand Dryer
You are not logged in
Please log in to continue or proceed as a guest.
Features
- Details:Finish: Polished White (PW)Voltage: 110/120VWattage: 50/60HzAmperage: 7.0A-7.7AMounting: Wall-Mounted - ADAPower Type: HardwiredDepth: 13.93” (102mm)Height: 13.93” (354mm)Width: 9.156” (233mm)
- Hygienic hand drying solution, 14 second dry time
- Electric Specifications: 110-120V – 7-7.7 Amps, 770-915 Watts, 50/60 Hz, Can install multiple units on one circuit
- Meets ADA requirements without the need of a recess kit
- Adjustable speed and sound (High/Low), Adjustable Heat (High/Low/Off)
- 95% cost savings vs. paper towels
- Weight: 8-10 lbs.
- Vandal resistant cover design, virtually maintenance free
- Externally visible Red LED light that flashes error codes to assist in troubleshooting and identify if filter has been clogged
- Air temperature of up to 141°F (61°C) at a 72°F (22°C) ambient room temperature at the hands (4 inches [102 mm] below air outlet)
- 35-second lockout feature if hands are not removed
- Suggested Mounting Heights for Ideal Performance (from floor to bottom of dryer):Men: 45” (114 cm)Women: 43” (109 cm)Teenagers: 41” (104 cm)Children: 35” (89 cm)ADA: 37” (94 cm)Note: When mounting for any user ensure that it is mounted below the 48” ADA Maximum
| Brand | Sloan® |
| Sub-Brand | Optima® |
| Case LxWxH | x x |
| Color | White |
| Cube | 0.3 |
| UPC | 671254476066 |
| Packaging Put/Up | 1/ea |
| Pallet Ti x Hi x Qty | x x |
| Sell UOM LxWxH | EA - 4 x 9.16 x 13.93 |
| Sell UOM Weight (lbs.) | 9 |
| Weight | 9 |
Safety Data Sheets
No Safety Data Sheets available for this product.
Technical Resources
| Name | Download | File type | |
|---|---|---|---|
|
|
Installation Guide | 546 KB | |
|
|
Spec Sheet | 328 KB |
