  3. EL154 Transformer 24 Volt Plate Mount

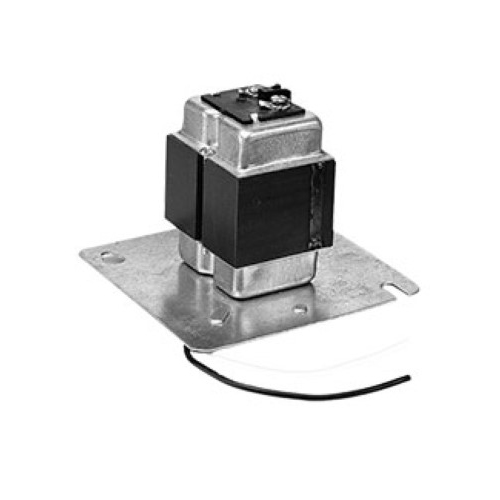

Sloan® EL-154 Box Mount 120 VAC Input/24 VAC Output, 1/ea (0345154PK)

Item # 42725566

Sloan® EL-154 Box Mount 120 VAC Input/24 VAC Output, 1/ea (0345154PK)
$49.04

Product Overview

The Sloan EL-154 transformer is a high-performance electrical transformer designed for a variety of applications in commercial settings. The EL-154 is a box mounted transformer that is recommended to be used with with Sloan Optima "ES-S" flushometers with the following specifications - 120 VAC Input/24 VAC Output, 50/60 Hz, 50 VA. The installation of the EL-154 transformer is straightforward, thats to its user friendly design that incorporates standardized mounting options and connection points. Whether used in large-scale industrial applications or smaller commercial settings, the EL-154 transformer stands out as a dependable choice for ensuring consistent electrical performance.

Features

  • One EL-154 transformer will power up to ten (10) OPTIMA “ES-S” water closet or urinal (any combination) flushometers
  • Transformers power different combinations of PWT Systems
  • Recommended for use on multi-combination units of urinals/water closets or lavatories/showers Class II, UL Listed
  • Box-mount, foot-mount or plug-in models offer installation flexibility
  • When using Sloan Optima® “ES-S” flushometers, the transformer must be specified and ordered separately. The following transformers are recommended:
         EL-154 (Box Mount) 120 V AC Input/24 V AC Output, 50/60 Hz, 50 VA (0345154PK)
         EL-342 (Box Mount) 240 V AC Input/24 V AC Output, 50/60 Hz, 50 VA (0345999PK)
         EL-208 (Foot Mount) 120 V AC Input/24 V AC Output, 50/60 Hz, 100 VA (0345211PK)
  • When using Sloan Optima® ETF or ESF Series faucets, the transformer must be specified and ordered separately
  • Some Optima® faucet installations can be powered by a single transformer, provided the transformer is properly sized
  • Allow a minimum of 15 VA of current rating for each faucet or solenoid valve being used
Brand Sloan®
Case LxWxH x x
Cube 0
UPC 671254139589
Packaging Put/Up 1/ea
Pallet Ti x Hi x Qty x x
Prop 65 This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For further details, please visit www.p65warnings.ca.gov.
Sell UOM LxWxH EA - x x
Sell UOM Weight (lbs.) 0
Weight 0
