Product Overview

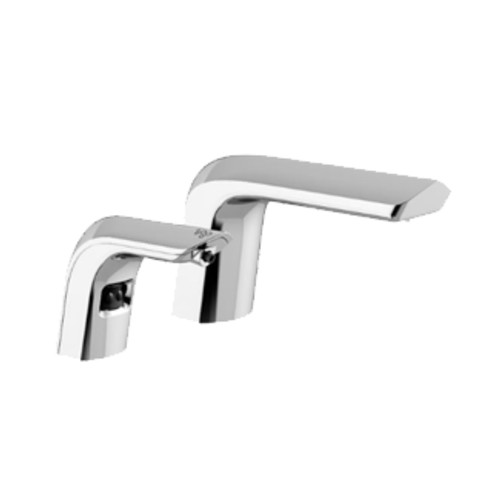

Upgrade your restroom experience with the Sloan ESD-411 Faucet & Soap Dispenser Combo (3346165), a polished chrome, sensor-activated wash station that blends performance with hygiene. This integrated system features a commercial-grade, ADA-compliant faucet with a cast brass spout, quick-connect fittings, and self-adapting sensor technology for consistent, touch-free water delivery. Paired with a deck-mounted electronic foam soap dispenser, it offers hands-free operation that helps reduce germ transmission and supports easy maintenance. The modular soap dispenser includes sealed electronics, a long-lasting motor assembly, dual 1500 ml soap bottles, and a generous battery life for up to 45,000 activations, enhancing efficiency in high-traffic environments. Perfect for schools, offices, restaurants, and medical facilities, this combo delivers reliable performance, convenience, and a modern aesthetic that elevates any commercial restroom.
Features
- Faucet Details:Commercial grade faucetADA compliantCast brass spoutQuick connect fittingsIntegrated water shut-offWireless settings adjustmentOn-demand or metered activationHygienic line flushWater usage and battery strength reportingSelf-adapting sensor
- Modular one-piece construction easily attaches to deck surface
- All electronics in spout are sealed
- Designed for drip free foam dispensing operation
- Motor assembly suspended under counter connected to soap dispenser spout
- Motor assembly rotates 360 degrees for easy installation
- Battery life of 45,000 activations
- 1,500 dispenses per foam soap bottle
- Ships with 2 bottles of non-scented, non-colored foam soap (1500ml per bottle)
- Additional foam soap can be purchased through Sloan (ESD-321) or GOJO distribution (8565-02-N6300GN)
- Ships with battery pack (4 D-cell alkaline batteries included)
- Sensor range – nominal 5”
- GFI outlet suggested per code
- 120V/15 Amp
- Optional AC adaptor can be purchased separately (part number 0346090)
- Select the ESD-411 to combine ESD-410 soap dispenser, 2 bottles of soap and the EBF-415 faucet
| Brand | Sloan® |
| Case LxWxH | x x |
| Color | Polished Chrome |
| Cube | 0 |
| Packaging Put/Up | 1/ea |
| Pallet Ti x Hi x Qty | x x |
| Sell UOM LxWxH | EA - x x |
| Sell UOM Weight (lbs.) | 19.45 |
| Weight | 19.45 |
Safety Data Sheets
No Safety Data Sheets available for this product.
Technical Resources
| Name | Download | File type | |
|---|---|---|---|
|
|
Installation Guide | 590 KB | |
|
|
Spec Sheet | 183 KB |
