Product Overview

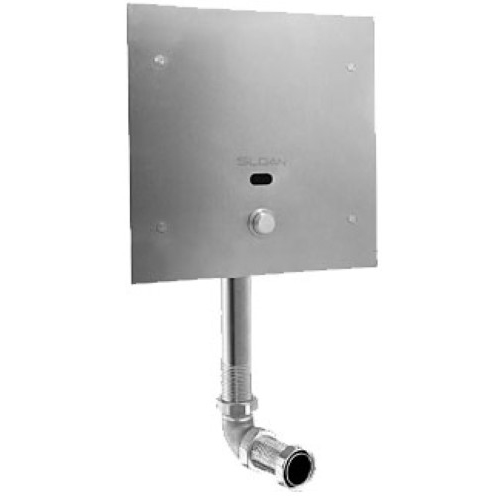

The Sloan Sensor Flushometer (3771625) is a premium concealed, hardwired flush valve designed specifically for water closet applications in commercial restrooms. Delivering a 1.28 gallon-per-flush volume, this flushometer combines water efficiency with dependable performance, thanks to its dual-filtered fixed bypass diaphragm and rugged semi-red brass construction. Equipped with a 24 V sensor system and self-adaptive infrared technology, it ensures touch-free activation while minimizing maintenance. The unit includes a small wall box and features true mechanical override for added usability. Its adjustable tailpiece and robust engineering make it ideal for new installs and retrofits in high-traffic settings, and the ADA-compliant design supports accessible restroom solutions. Suitable for facilities seeking water savings, hygiene, and long-lasting performance.
Features
- Details:Flush Volume: 1.28 gpf (4.8 lpf)Finish: Rough Brass (RB)Power Type: Hardwired (HW)Valve: DiaphragmBypass: Dual-Filtered Fixed Bypass DiaphragmValve Body Material: Semi-red BrassFixture Type: Water ClosetFixture Connection: Rear SpudRough-in Dimension: 14.5” (368mm)Spud Coupling: 1.5” (38mm)Supply Pipe: 1” (25mm)L Dimension: 2”-10.75” (51-273mm)Override: True Mechanical (TMO)Wall Box: Small Wall Box Included (SWB)Voltage: 24V (24V)
- Water conservation is aided by the ADA-compliant, non-hold open handle
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece to accommodate different height requirements
- High chloramine resistant PERMEX® synthetic rubber diaphragm with linear filtered bypass and vortex cleansing action
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
| Brand | Sloan® |
| Case LxWxH | x x |
| Color | Rough Brass |
| Cube | 0 |
| Packaging Put/Up | 1/ea |
| Pallet Ti x Hi x Qty | x x |
| Sell UOM LxWxH | EA - x x |
| Sell UOM Weight (lbs.) | 0 |
| Weight | 0 |
Safety Data Sheets
No Safety Data Sheets available for this product.
Technical Resources
| Name | Download | File type | |
|---|---|---|---|
|
|
Spec Sheet | 538 KB |
