Product Overview

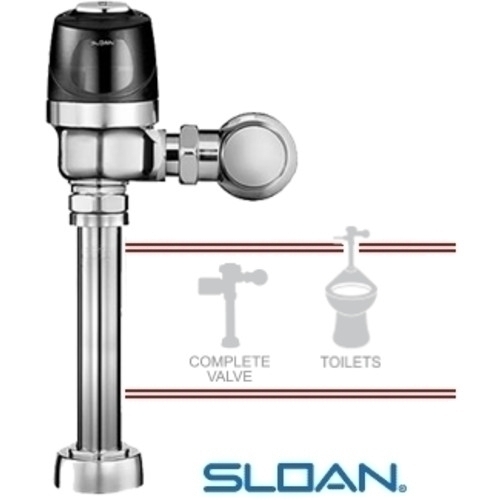

The Sloan 3790011 Sensor Flushometer offers a high-efficiency, touch-free flushing solution for commercial restrooms. Designed with a polished chrome finish, this exposed sensor flushometer delivers a 1.6 gallons-per-flush cycle to help meet water conservation goals while maintaining powerful performance. Infrared activation reduces germ spread by eliminating the need for manual handles, and a built-in electrical override button allows courtesy flushing when needed. Powered by batteries with long life and engineered with a high-chloramine-resistant diaphragm and durable semi-red brass construction, the unit is built for dependable use in schools, offices, airports, and other high-traffic facilities. ADA compliant and compliant with major plumbing standards, it also includes a user-friendly flush delay and quality vacuum breaker for consistent operation and minimal maintenance.
Features
- Flush Volume: 1.6 gpf (6.0 Lpf) (1.6)
- Finish: Polished Chrome (CP)
- Power Type: Battery
- Valve: Diaphragm
- Valve Body Material: Semi-red Brass
- Fixture Type: Water Closet
- Fixture Connection: Top Spud
- Rough-In Dimension: 11-1/2" (292mm)
- Spud Coupling: 1-1/2" (38mm)
- Supply Pipe: 1" (25mm)
- Override: Electrical
- High chloramine resistant PERMEX® synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
| Brand | Sloan® |
| Case LxWxH | x x |
| Color | Polished Chrome |
| Cube | 0 |
| UPC | 671254316683 |
| Packaging Put/Up | 1/ea |
| Pallet Ti x Hi x Qty | x x |
| Sell UOM LxWxH | EA - 0 x 0 x 16.5 |
| Sell UOM Weight (lbs.) | 9.5 |
| Weight | 9.5 |
Safety Data Sheets
No Safety Data Sheets available for this product.
Technical Resources
| Name | Download | File type | |
|---|---|---|---|
|
|
Spec Sheet | 366 KB |
