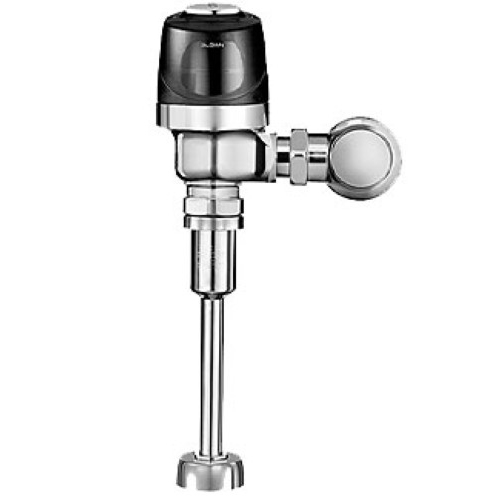

Sloan® Sensor Flushometer, 1.0 gpf, Polished Chrome, 1/ea (3790013)

Item # 42727501

Sloan® Sensor Flushometer, 1.0 gpf, Polished Chrome, 1/ea (3790013)
The Sloan 8186 (3790013) Sensor Flushometer delivers efficient, touch-free flushing with a 1.0 gallon-per-flush rate for urinals. Finished in polished chrome and built from semi-red brass, this battery-powered unit features a high-chloramine-resistant PERMEX® diaphragm with linear filtered bypass and vortex action for reliable performance. With a top spud connection, courtesy flush override button, and ADA/cUPC compliance, it’s ideal for commercial restrooms prioritizing hygiene and water savings.
$557.99

Product Overview

The Sloan 8186 (3790013) Sensor Flushometer is a high-performance, 1.0 GPF exposed urinal flushometer engineered for modern commercial restroom applications. Featuring polished chrome finish and rugged semi-red brass construction, it ensures lasting durability and corrosion resistance. The advanced battery-powered infrared sensor offers touch-free operation to enhance sanitation and reduce germ spread, while the high-chloramine-resistant PERMEX® synthetic rubber diaphragm with linear filtered bypass and vortex cleansing action ensures consistent, dependable flushing. This model includes a courtesy flush override button, adjustable tailpiece, and requires a ¾″ top spud connection with 11½″ rough-in dimensions. ADA compliant and certified to cUPC/BAA/IAPMO standards, it’s the smart choice for water-efficient, low-maintenance restroom design.

Features

  • Details:
         Flush Volume: 1.0 gpf (3.8 Lpf)
         Finish: Polished Chrome (CP)
         Power Type: Battery
         Battery Life: 6 years
         Valve: Diaphragm
         Valve Body Material: Semi-red Brass
         Fixture Type: Urinal
         Fixture Connection: Top Spud
         Rough-In Dimension: 11.5" (292mm)
         Spud Coupling: 0.75" (19mm)
         Supply Pipe: 0.75" (19mm)
  • High chloramine resistant PERMEX® synthetic rubber diaphragm with linear filtered bypass and Vortex Cleansing Action™
  • Sweat solder adapter with cover tube and cast wall flange
  • 3/4" I.P.S. screwdriver Bak-Chek® angle stop with vandal resistant stop cap
  • Spud coupling and spud flange for 3/4" top spud
  • "Low Battery" flashing LED
  • No external volume adjustment to ensure water conservation
  • Stop seat and vacuum breaker molded from PERMEX® rubber compound for chloramine resistance
  • Infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
  • Engineered plastic cover with replaceable lens window
  • Courtesy Flush® override button
  • Four (4) size AA batteries included
  • ADA compliant
Brand Sloan®
Case LxWxH x x
Color Polished Chrome
Cube 0
Packaging Put/Up 1/ea
Pallet Ti x Hi x Qty x x
Sell UOM LxWxH EA - x x
Sell UOM Weight (lbs.) 0
Weight 0
