Sloan® CX 198 Concealed Manual Urinal Flushometer, 0.125 gpf, Polished Brass, 1/ea

Product Overview

The Sloan CX 198-0.125-PB Manual Concealed Urinal Flushometer (3400223) delivers reliable, water-efficient flushing for commercial restroom applications with a polished brass finish that enhances design appeal. Engineered to operate at 0.125 gallons per flush, this concealed manual flushometer utilizes a filtered bypass piston valve for consistent performance and reduced water use. Its ADA-compliant push button, adjustable flush connection outlet tube, integrated control stop, and short V500A vacuum breaker ensure easy operation and long-term reliability. The compact front access wall box and vandal-resistant wall plate allow service and maintenance from the front without rear plumbing chase access, cutting labor time and costs. Perfect for high-traffic facilities, this flushometer combines compliance, durability, and efficient water management in a polished brass package.

Features

• Fixed volume piston with filtered O-ring bypass
• Front access wall plate requires no rear access plumbing chase
• ADA compliant push button

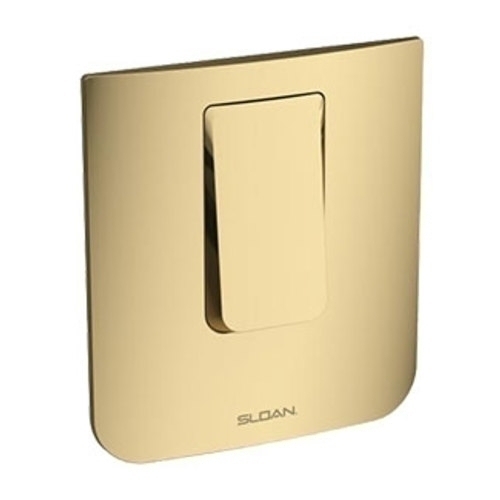

• Vandal resistant wall plate
• Adjustable flush connection
• Details:
       Flush Volume: 0.125 gpf (0.5 Lpf)
       Wall Plate Finish: Polished Brass (PB)
       Valve: Piston
       Bypass: Filtered
       Valve Body Material: Semi-red Brass
       Fixture Type: Urinal
       Fixture Connection: Rear
       Rough-In Dimension: 12 ⅝" (321mm)
       Spud Coupling: ¾" (19mm)
       Supply Pipe: ¾" (19mm)
       L Dimension: 3 ¼" – 4 ¼" (83 – 108mm)
       Wall Box: Front Accessible
       Push Button: ADA Compliant
       Control Stop: Integrated
       Vacuum Breaker: Short V500A & Adjustable Flush Connection
       Outlet Tube: Adjustable Flush Connection
