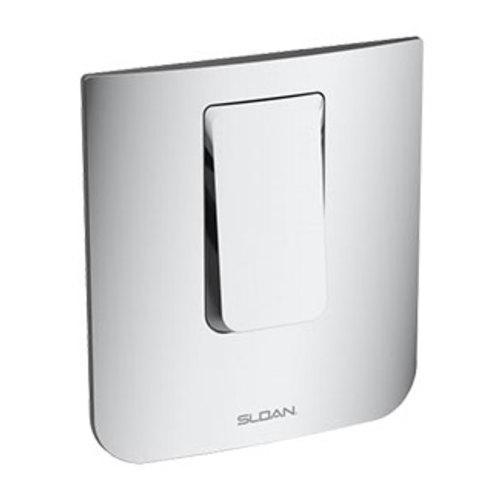

Sloan® CX 198 Concealed Manual Urinal Flushometer, 0.5 gpf, Polished Chrome, 1/ea

Product Overview

The Sloan CX 198‑0.5 CP Manual Concealed Urinal Flushometer (3400202) is a high‑efficiency, 0.5 gallon‑per‑flush manual flush valve engineered for commercial restroom settings. Finished with a polished chrome wall plate and built on a semi‑red brass valve body, this concealed unit combines durability with refined aesthetics. The fixed‑volume piston with filtered O‑ring bypass ensures consistent flushing performance, while the front accessible wall box means easier servicing without rear wall access. An ADA‑compliant push button and integrated control stop make operation straightforward and compliant with accessibility standards. Designed for a ¾″ rear spud connection and adjustable flush outlet, it includes a short V500A vacuum breaker for safe backflow protection and a vandal‑resistant wall plate for long‑lasting performance in high‑traffic facilities. Whether for new installations or restroom upgrades, this flushometer helps reduce water use while delivering reliable, maintenance‑friendly operation.

Features

• Details:
       Flush Volume: 0.5 gpf (1.9 Lpf)
       Finish: Rough Brass (RB)
       Wall Plate Finish: Polished Chrome (CP)
       Valve: Piston
       Bypass: Filtered
       Valve Body Material: Semi-red Brass
       Fixture Type: Urinal
       Fixture Connection: Rear
       Rough-In Dimension: 12 ⅝" (321mm)
       Spud Coupling: ¾" (19mm)
       Supply Pipe: ¾" (19mm)
       L Dimension: 3 ¼" – 4 ¼" (83 – 108mm)
       Wall Box: Front Accessible
       Push Button: ADA Compliant
       Control Stop: Integrated
       Vacuum Breaker: Short V500A & Adjustable Flush Connection
       Outlet Tube: Adjustable Flush Connection

• Fixed volume piston with filtered O-ring bypass
• Front access wall plate requires no rear access plumbing chase
• ADA compliant push button
• Vandal resistant wall plate

• Adjustable flush connection
