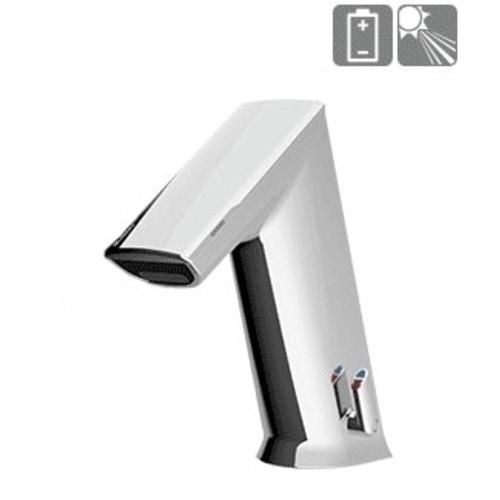

- Sloan EFX-250 Battery-Powered Deck-Mounted Mid Body Faucet,
You are not logged in
Please log in to continue or proceed as a guest.
Features
- Details:
Flow Rate: 0.5 gpm (2 Lpm) (0.5GPM)
Spray Type: Multi-Laminar (MLM)
Sensor Type: Infrared (IR)
Mounting Type: Single Hole
Power Supply: Battery (BAT)
Temperature Mixer: Mixer not included
Finish: Polished Chrome (CP)
Factory Default Timeout: 10s
Factory Default GPC: 0.083 - Electrical Specifications:Battery Life: 3 yearsSelf-Adjustment Range: 2" – 14" (51 – 356mm)Sensor Range: 4" – 5" (102 – 127mm)Timeout Adjustment Settings: 30s
- All wetted components to be stainless steel, engineered thermoplastic, EPDM, and copper or copper alloy
- Solenoid housed in removable carrier that includes supply strainer
- Integral water supply shut off
- Supply strainer serviceable from above deck
- Vandal resistant spray insert, key housed inside faucet body
- All electronics sealed to IP-190
- Gold plated electrical contacts
- Above deck individual diagnostic indicators for battery life, solenoid condition, and power up mode
- Flexible, high pressure supply hoses, 3/8” compression connections
- Bi-stable magnetic solenoid
- Four (4) “AA” alkaline batteries
- Double infrared sensors with automatic setting feature
- Includes all mounting hardware
- Line purge mode, eliminates stagnant water
- Adjustable time-outs
- Standard Bowed Crown
- One tool service
- ADA Compliant, UL Certified, CEC Compliant, CalGreen Compliant, GPC 0.25 or less, cUPC Low Lead Compliant
| Brand | Sloan® |
| Sub-Brand | BASYS® |
| Case LxWxH | x x |
| Color | Polished Chrome |
| Cube | 0.04 |
| UPC | 671254391338 |
| Packaging Put/Up | 1/ea |
| Pallet Ti x Hi x Qty | x x |
| Sell UOM LxWxH | EA - 6 x 2.25 x 5 |
| Sell UOM Weight (lbs.) | 4.116 |
| Weight | 0 |
Safety Data Sheets
No Safety Data Sheets available for this product.
Technical Resources
| Name | Download | File type | |
|---|---|---|---|
|
|
Spec Sheet | 493 KB |
