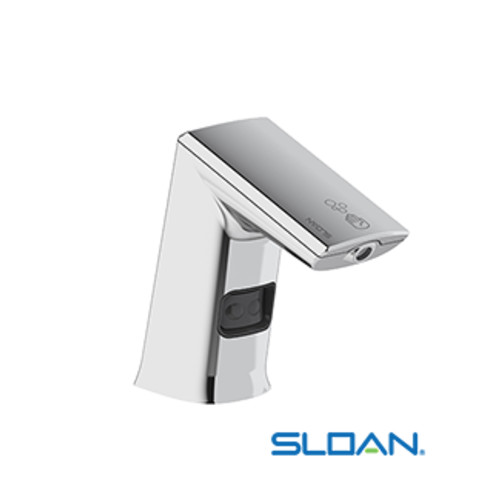

Sloan® ESD-500 Activated Electronic Soap Dispenser w/ Below Deck Pump & Soap, Polished Chrome, 1/ea

Product Overview

The Sloan ESD-500 Sensor-Activated Foam Soap Dispenser offers a sleek, deck-mounted solution for hygienic handwashing in commercial and public restrooms. Designed to match Sloan’s electronic faucet lines, this sensor-activated dispenser features a chrome-plated, electronic die-cast body with sealed infrared technology that delivers pre-measured foam soap without touching the unit. Built for durability and easy installation, the ESD-500 includes two 1500 ml bottles of non-scented, non-colored foam soap and batteries for up to 45,000 activations. Its modular, one-piece construction mounts seamlessly on sink decks, while the replaceable soap refill bottle with an easy-release collar simplifies maintenance and reduces downtime. Ideal for offices, schools, restaurants, and healthcare facilities seeking enhanced sanitation, this ADA-compliant dispenser improves restroom hygiene and user experience with reliable, touchless operation.

Features

• Details:
       Finish: Polished Chrome (CP)
       Power Type: Battery
       Height: 5" (127mm)
       Width: 2" (51mm)
       Depth: 51/5" (132mm)
       Sensor Type: IR
• Modular one-piece construction easily attaches to deck surface
• All electronics in spout are sealed
• Designed for drip free foam dispensing operation
• Motor assembly suspended under counter connected to soap dispenser spout
• Motor assembly rotates 360 degrees for easy installation
• Battery life of 45,000 activations
• 1,500 dispenses per foam soap bottle
• Ships with 2 bottles of non-scented, non-colored foam soap (1500 ml per bottle)
• Ships with battery pack (4 "D" Alkaline batteries included)
• Sensor range - nominal 5"
• GFI outlet suggested per code
• 120V/15 Amp
• Optional AC adaptor can be purchased separately (part number 0346090)
