  3. Sloan Regal 186-1.0 XL Flush Valve for Urinals - 11.5 Rough

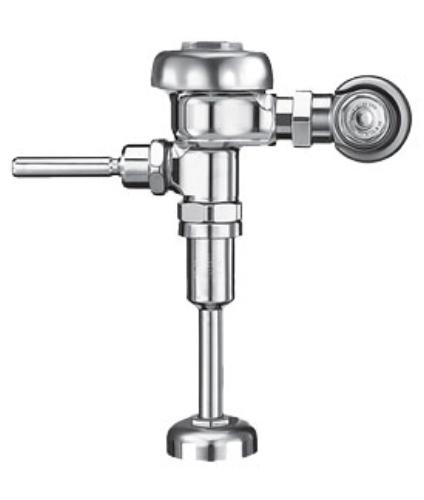

Sloan® REGAL 186 Regal® Exposed Manual Urinal Flushometer, 1.0 gpf, Polished Chrome, 1/ea

Item # REGAL186-1XL-3082675

Sloan® REGAL 186 Regal® Exposed Manual Urinal Flushometer, 1.0 gpf, Polished Chrome, 1/ea
The Sloan Regal® Manual Flushometer (3082675 - REGAL 186) delivers reliable, low-consumption performance for urinal installations. Engineered with a polished chrome finish and durable semi-red brass body, this exposed single-flush valve operates at 1.0 gpf (3.8 Lpf) while supporting 15-80 psi pressure. ADA-compliant non-hold-open handle and Para-Flo™ technology ensure water conservation and precise flush control. Includes XL sweat solder adapter kit, adjustable tailpiece, and robust control stop plug for long-lasting performance.

Product Overview

Enhance restroom efficiency with the Sloan Regal® Manual Flushometer, REGAL 186 (3082675), designed for exposed urinal applications with a polished chrome finish and high-quality semi-red brass construction. Delivering a 1.0 gallon-per-flush (3.8 Lpf) performance within a 15-80 psi operating range, this manual flushometer features an ADA-compliant non-hold-open metal handle that promotes water conservation and prevents excessive flushing. Advanced Para-Flo™ technology ensures accurate low consumption flushes, while the adjustable tailpiece and XL sweat solder adapter kit simplify installation. Built to last, the control stop plug and robust diaphragm valve offer dependable performance, making it ideal for commercial and high-traffic restrooms.

Features

  • Details:
         Flush Volume: 1.0 gpf (3.8 Lpf)
         Finish: Polished Chrome (CP)
         Valve: Diaphragm
         Valve Body Material: Semi-red Brass
         Fixture Type: Urinal
         Fixture Connection: Top Spud
         Rough-In Dimension: 11 1/2" (292mm)
         Spud Coupling: 3/4" (19mm)
         Supply Pipe: 3/4" (19mm)
  • Flush volumes start as low as 0.5 gpf/1.9 Lpf
  • Water conservation is aided by the ADA-compliant, non-hold open handle, which prevents urinal from exceeding intended flush volume
  • Low consumption flush accuracy controlled by Para-Flo™ technology
  • Integrity of the product is maintained with control stop plug
  • Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
  • Adjustable tailpiece
  • Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
  • Valve shall be in compliance to the applicable sections of ASSE 1037
  • ADA compliant
Brand Sloan®
Sub-Brand Regal®
Case LxWxH x x
Color Polished Chrome
Cube 0
Packaging Put/Up 1/ea
Pallet Ti x Hi x Qty x x
Sell UOM LxWxH EA - x x
Weight 0

Safety Data Sheets

No Safety Data Sheets available for this product.


Technical Resources

  Name Download File type
Spec Sheet
Spec Sheet 250 KB PDF
