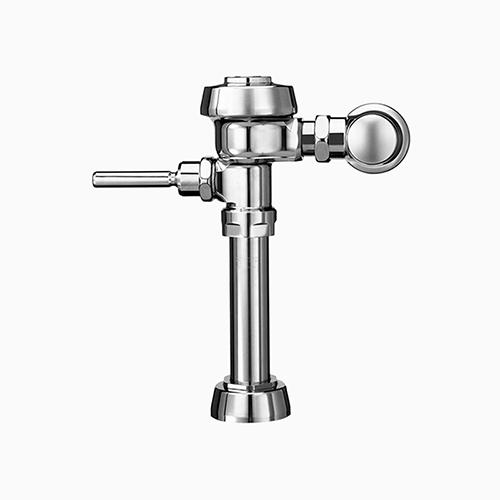

Sloan® 110-3.5-E Royal® Exposed Manual Water Closet Flushometer, 3.5 gpf, Polished Chrome, 1/ea

Item # 42727605

The Sloan Royal® 110-3.5-E-CP-H Exposed Manual Water Closet Flushometer delivers reliable, efficient flushing with a 3.5 gallons-per-flush design and polished chrome finish. Built with a durable diaphragm valve and semi-red brass body, this top-spud flushometer features an ADA-compliant non-hold-open handle, vandal-resistant stop cap, and adjustable tailpiece for long-lasting performance in commercial restrooms. It is UPC, ADA and BAA certified for quality and compliance.

$231.79

Product Overview

Upgrade high-traffic commercial restroom fixtures with the Sloan Royal® 110-3.5-E-CP-H Exposed Manual Water Closet Flushometer, engineered for dependable performance and water efficiency. Featuring a polished chrome finish over a rugged semi-red brass body and diaphragm valve, it’s designed for top-spud connection installations. This single-flush unit delivers a consistent 3.5 gpf (13.2 Lpf) and includes an ADA-compliant non-hold-open handle that helps conserve water by preventing excess flushing. Additional features include CID™ technology for flush accuracy, a vandal-resistant stop cap, and an adjustable tailpiece for easier installation. Certified to ADA, UPC, IAPMO and BAA standards, this flushometer ensures long-lasting durability and code compliance for commercial water closets.

Features

Details:
Flush Volume: 3.5 gpf (13.2 lpf)
Finish: Polished Chrome (CP)
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top Spud
Rough-in Dimension: 11.5” (292mm)
Spud Coupling: 1.5” (38mm)
Supply Pipe: 1” (25mm)
Handle Placement: Front of Valve (H)
Control Stop: 1” Straight (E)
Flush volumes start as low as 3.5 gpf/13.2 Lpf
Water conservation is aided by the ADA-compliant, non-hold open handle, which prevents toilet from exceeding intended flush volume
Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
Integrity of the product is maintained with the vandal-resistant stop cap
Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
Adjustable tailpiece
PERMEX® synthetic rubber diaphragm with dual filtered fixed bypass
Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
Valve shall be in compliance to the applicable sections of ASSE 1037

Brand	Sloan®
Sub-Brand	Royal®
Case LxWxH	x x
Color	Polished Chrome
Cube	0
UPC	671254225459
Packaging Put/Up	1/ea
Pallet Ti x Hi x Qty	x x
Sell UOM LxWxH	EA - x x
Sell UOM Weight (lbs.)	7.901
Weight	7.901
