- Sloan Royal 111 (3010000) Exposed Flush Valve for Toilets 1.
You are not logged in
Please log in to continue or proceed as a guest.
Product Overview

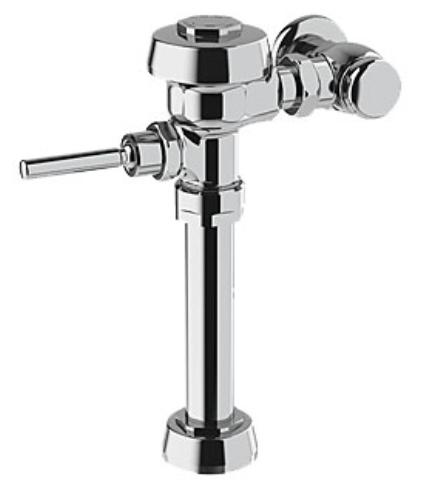

The Sloan ROYAL 111-1.6-CP Exposed Manual Flushometer is a premium choice for commercial water closets, offering dependable performance and water efficiency. Engineered to deliver a consistent 1.6 gallons-per-flush (6.0 Lpf) with a polished chrome finish, this top-spud fixture connection model enhances any restroom installation. Crafted with a rugged diaphragm valve and semi-red brass body, it features an ADA-compliant non-hold-open handle, vandal-resistant stop cap, and adjustable tailpiece for lasting durability. CID™ technology helps control flush accuracy and reduce water waste, while compliance with industry standards ensures full code compatibility. Ideal for high-traffic facilities seeking reliability and efficient operation.
Features
- Details:Flush Volume: 1.6 gpf (6.0 lpf)Finish: Polished Chrome (CP)Valve: DiaphragmValve Body Material: Semi-red BrassFixture Type: Water ClosetFixture Connection: Top SpudRough-in Dimension: 11.5” (292mm)Spud Coupling: 1.5” (38mm)Supply Pipe: 1” (25mm)
- Water conservation is aided by the ADA-compliant, non-hold open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX® synthetic rubber diaphragm with dual filtered fixed bypass
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
| Brand | Sloan® |
| Sub-Brand | Royal® |
| Case LxWxH | x x |
| Color | Polished Chrome |
| Cube | 0.07 |
| Packaging Put/Up | 1/ea |
| Pallet Ti x Hi x Qty | x x |
| Sell UOM LxWxH | EA - 2.25 x 4.75 x 11.5 |
| Sell UOM Weight (lbs.) | 7.98 |
| Weight | 7.98 |
Safety Data Sheets
No Safety Data Sheets available for this product.
Technical Resources
| Name | Download | File type | |
|---|---|---|---|
|
|
Spec Sheet | 255 KB |
