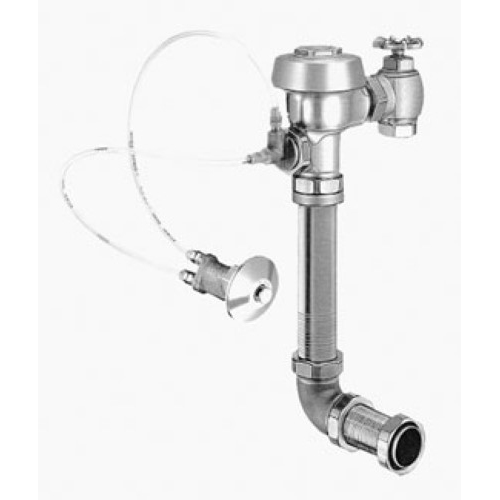

Sloan® ROYAL 9611 Royal® Concealed Manual Specialty Water Closet Hydraulic Flushometer, 3.5 gpf, Rough Brass, 1/ea (3918755)

Item # 42729164

The Sloan Royal® 9611 (3918755) Concealed Manual Flushometer is a rugged, hydraulically‑operated flush valve engineered for commercial water closets with rear spud installation. Delivering a 3.5 gallon‑per‑flush cycle, this ADA‑compliant valve features semi‑red brass construction, PERMEX® rubber diaphragm and high‑back pressure vacuum breaker for reliable performance. Concealed design with vandal‑resistant push button makes it ideal for institutional and heavy‑use restroom environments.

$264.06

Product Overview

The Sloan Royal® 9611 (3918755) Concealed Manual Flushometer is a robust, professionally‑designed flush valve for commercial and institutional water closet installations. Engineered with hydraulic activation and a 3.5 gallon‑per‑flush volume, it ensures powerful, dependable flushing performance for wall‑hung rear‑spud toilets. Its semi‑red brass valve body with PERMEX® synthetic rubber diaphragm and high‑back pressure vacuum breaker provides long‑lasting durability and chloramine resistance, while ADA‑compliant push‑button operation and vandal‑resistant components support high‑traffic facilities. The concealed design conceals plumbing for a clean aesthetic and added protection, and its rear spud connection and rugged build make it suitable for correctional facilities, schools, hospitals and public restrooms. Built to meet strict ASSE 1037 and UPC standards, this manual flushometer combines reliable performance with water‑efficient operation and enduring commercial‑grade construction.

Features

Details:
Flush Volume: 3.5 gpf (13.2 lpf)
Finish: Rough Brass (RB)
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Rear Spud
Rough-in Dimension: 24” (610mm)
Spud Coupling: 1.5” (38mm)
Supply Pipe: 1” (25mm)
Royal®, Regal® and Sloan® Prison Flushometers feature all the performance benefits of standard concealed, diaphragm model Flushometers with added durability to withstand rough environments
Diaphragm, handle packing, stop seat and vacuum breaker molded from PERMEX® rubber compound for chloramine resistance
Vandal-proof, push button operation with ADA-compliant fixture wall or panel-mount actuator options on select models
Non-hold-open feature keeps fixture from surpassing intended water consumption
Adjustable tailpiece accommodates various installations
PERMEX® synthetic rubber diaphragm with dual filtered fixed bypass
Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
Valve shall be in compliance to the applicable sections of ASSE 1037

Brand	Sloan®
Sub-Brand	Royal®
Case LxWxH	x x
Color	Rough Brass
Cube	0
UPC	671254098053
Packaging Put/Up	1/ea
Pallet Ti x Hi x Qty	x x
Sell UOM LxWxH	EA - x x
Sell UOM Weight (lbs.)	9.3
Weight	9.3
